XL-AES
8 channel expander for Sound Devices Scorpio, 888 and 833
£230.00 ex vat
£276.00 inc vat

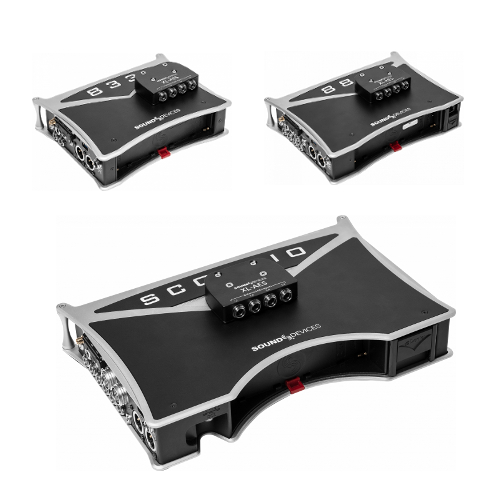

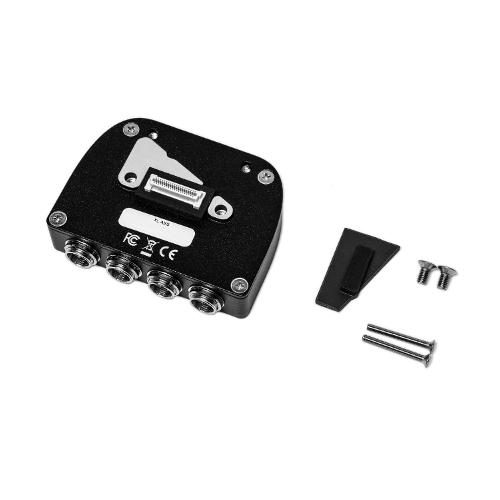

The XL-AES is an optional accessory for the Scorpio, 888, and 833 that provides 8 channels of AES3 audio connectivity through four heavy-duty TA3F input jacks. The accessory mounts directly to the expansion port on the mixer-recorder’s top panel and features a rugged milled aluminum enclosure for years of reliable use.
The XL-AES appears in the Channel Input Source menu with all other possible input sources. Any of the 8 audio channels from the XL-AES may be routed to any channel on the mixer-recorder.
You can find full installation instructions HERE
Powering: the XL-AES receives power from the host mixer-recorder
Input type: AES3, balanced, TA3F connectors
Impedance: 110 ohms
Sensitivity: 200 mV or higher accepted
Wiring: pin 1 = ground; pin 2 = +; pin 3 = –
