Lectrosonics DPR Digital Wireless Plug-on Transmitter

The Lectrosonics DPR digital plug on transmitter with record function will ideally match any microphone or line level source via a standard XLR connector. The DPR can tune in coarse or fine steps across the UHF television band from 470 – 614 MHz, with a selectable output power of 25 or 50 mW. The purely digital architecture utilizes AES 256-CTR encryption for high level security applications.

Key Features:

• Wideband UHF tuning range 470-614 MHz for E01 version
• Accepts microphone or line level signals
• Selectable 5, 15, 48 volt phantom power
• Selectable 25/50 mW RF output power
• Adjustable low frequency roll-off
• Powered by two AA batteries
• IR (infrared) port for fast setup
• Remote controlled “dweedle” tones (audio tone set-up control)
• Time code jam sync with
• Solid machined aluminum housing
• On board recording
• Encryption 256 Bit AES, CTR Mode

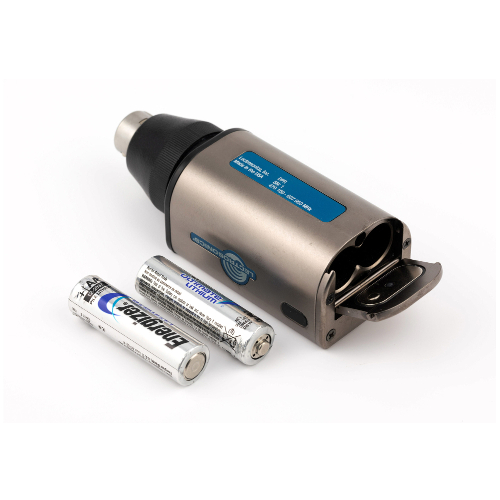

The transmitter is specially designed with high efficiency digital circuitry for extended operating time on two AA batteries, with status indicated by a multi-color LED. An IR (infrared) port is included to simplify setup with IR enabled receivers. Updates can be made via SD card.

The input amplifier uses an ultra low noise op-amp for quiet operation. It is gain controlled with a wide range, dual envelope limiter, providing over 30 dB of headroom above full modulation. A 24-bit A-D converter digitizes the audio, then filters out supersonic noise above 21 kHz.

The antenna is formed between the machined aluminum housing of the transmitter and the attached microphone or cable. It functions as a dipole radiator when attached to a hand-held microphone and somewhat like a ground plane antenna when connected with a cable or plugged directly into a mixer. The conical shaped collar on the input coupler is made of DuPontTM Delrin® to improve the ERP of the antenna in the uppermost frequency bands.

Setup and adjustments are achieved through a backlit LCD, membrane switches and an intuitive menu structure. The DPR also offer hands free setup and adjustment using audible tones via the LectroRM mobile app. Remotely, the DPR can be powered on and off, and the frequencies and audio levels can be adjusted. Other features include input gain adjustment in 1 dB increments over a 55 dB range and adjustable low frequency audio roll-off for 3 dB down points at 25, 35, 50, 70, 100, 120 or 150 Hz to control subsonic and very low frequency audio content.
