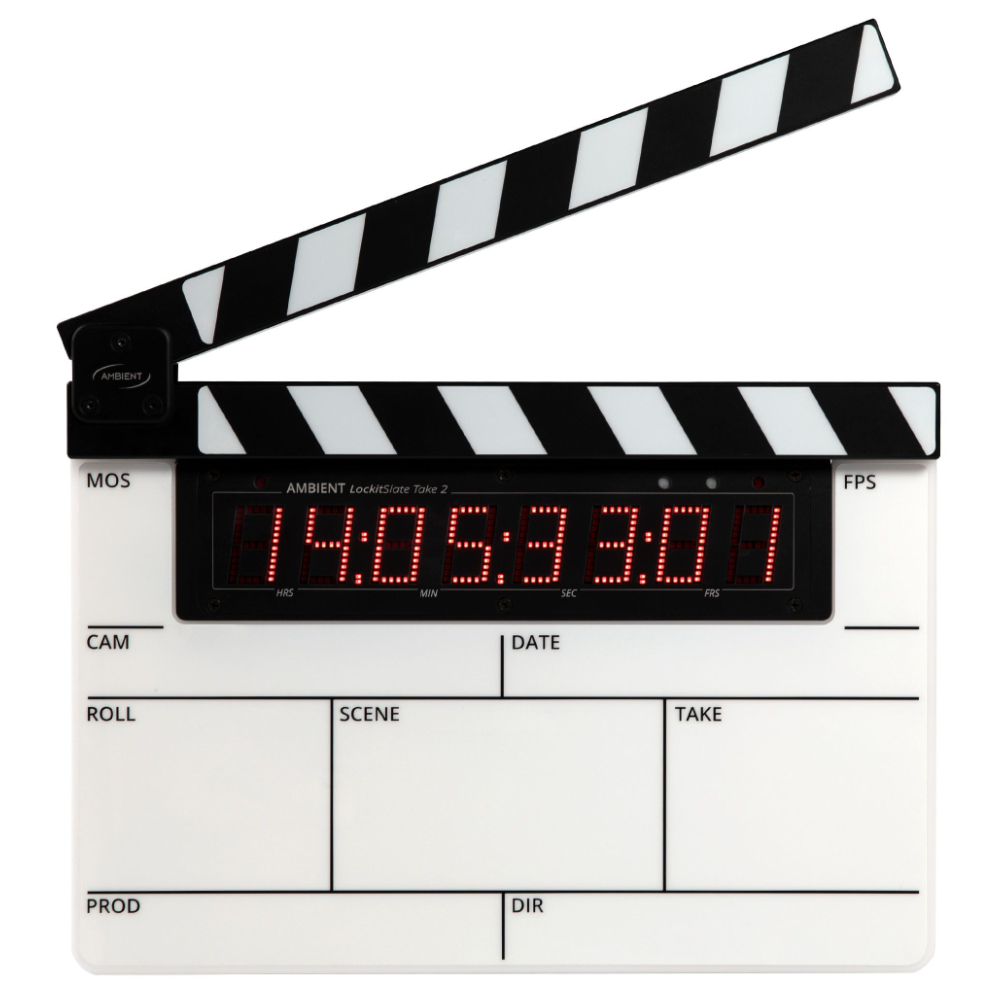

ACN-LS2 - LockitSlate Take 2

What's new compared to the previous LockitSlate?

• The same simple operation via 3 buttons as with the Lockit and NanoLockit
• New, mixed adaptive LED brightness mode: manually set the desired brightness, the display will dynamically adapt to changing light situations
• Improved resistance against humidity through lip sealing around LED display and approved 3 button design
• Improved energy efficiency due to modernized architecture optimized for NiMH chargeables

As all Ambient Clockit devices the »Lockit Slate« provides a rock solid, highly accurate, temperature compensated time code generator.

Double the brightness with 2 cells less and still longer battery life

The completely revised LED time code display features double the brightness at less than half of the power consumption of its predecessor. Therefore we could reduce the batteries to only 4 AA cells and still achieve a prolonged battery life.

Additionally we equipped the new slate with light and motion sensors. Thus the brightness can now be automatically adjusted to the local light situation and the display flips when the slate is turned upside down.

Transmit the clapped time directly to the script app

Furthermore our new slate comprises the full functionality of the Tiny Lockit including ACN (Ambient Clockit Network) support, metadata and clap time transfer, and logging. These network capabilities also allow the »Lockit Slate« to be a fully functional, generator buffered time code transceiver. This provides the stability of an Ambient Clockit generator with the flexibility of a wireless TC system but without the fear of dropouts. »Use the Lockit Slate as Midi TC display and interface« In addition, it also offers a variable time code offset to compensate for processing delays of digital cameras. Plugged in into a computer, the Lockit Slate transforms into a highly accurate Midi time code interface with LTC / Midi time code conversion and of course big TC LED display. This way the ACN-LS opens up the possibility to sync for examples multiple cameras with a Pro Tools workstation. As known from the Lockit and Tiny Lockit, the user interface is easy and intuitive to use. »Use the display standalone as fully functional Tiny Lockit«

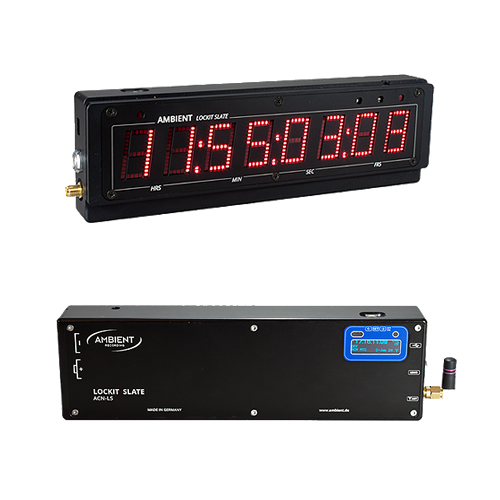

Thanks to an all new and revolutionary modular construction, the electronic section of the Lockit Slate can also serve as a fully functional, compact standalone display for documentary or desktop use. Housed in a machined, pearl blasted and anodized aluminum body it can easily withstand the roughest production conditions.

»Never loose the time code when changing batteries...«

Thanks to the built-in Supercap the ACN-LS is able to hold the highly accurate time code for more than 10 minutes after loss of power. Thus changing batteries no longer automatically means to rejam the slate.

»Choose the matching slate body to suite your purse and style«
Interchangeable slate bodies allow for customization and will be made available as easy to swap clapperboards in various sizes, weight, and materials ranging from basic to classy. So, the user will always be able to choose the slate body that suits him best.

This product is supplied with the plastic clap boards, if you require the wooden version please see ACN-LSW2

• Highly accurate time code generator
• Supports all used frame rates
• Adjustable TC offset
• Generator buffered time code transceiver
• Full Ambient Clockit Network support
• Clap time transmission via ACN
• Drift of less than 1 frame a day (~0,1ppm, 0,0ppm within ACN))
• OLED Display for configuration
• Extremly bright LED TC display
• Light sensor for automatic brightness adjustment
• Tilt sensor for flipping tc display with end slates
• Backup Supercap holds tc for more than 10min after power loss
• Conversion between LTC and MTC (via USB)
• RS232, USB and GP I/O Port
• Stand alone mode
• Only 4 AA batteries
• Dimension without slate body: 210 x 63 x 28 mm
• Weight (without batteries, body): 404 g

Changes for the new LockitSlate Take 2 to be confirmed.
