S-3602C
Swit S-3602C 2-channel simultaneous DV Charger
£99.75 ex vat
£119.70 inc vat
Canon BP series DV battery Charger
S-3602C is a dual channel charger for SWIT S-8845, S-8945, and compatible with Canon BP series DV batteries.

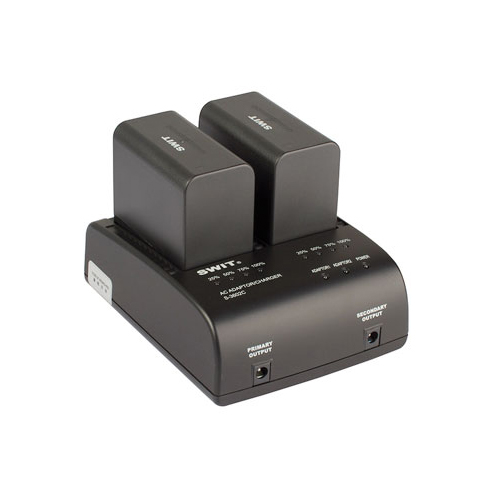

Dual Channel Simultaneous Charging
S-3602C has 2 charging channels, with DC 8.4V, 2A charging output for each channel, and can charge 2 batteries simultaneously. The 4-level LED charging indicators are provided for each channel, which indicate the real time capacity by percentage when charging.
AC-DC Adapting Output

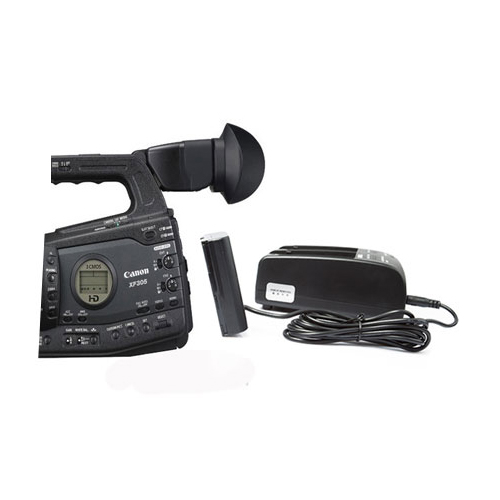

S-3602C has 2x 5.5mm/2.1mm pole sockets for DC adapting output. The DC outputs work simultaneously and provides DC 8.4V, 3.5A in total. The package also provides a dummy Canon BP series battery adaptor (S-7500C) for adapting Canon DV cameras, or the equipments with Canon BP series battery mounts.
Advanced Charging Curve
Li-ion charging follows a two-period approach. The first period is constant-current. The battery is charged at the maximum charging rate. When the battery reaches a specified set-point voltage, charging circuits switch to the second period: the constant-voltage period. The charging circuit will provide only enough current to maintain the voltage, to prevent the battery from over charging.
Key Features
| Power input | AC 100V-240V 50/60Hz | |
| Charging output | DC 8.4V, 2A×2 | |
| Adapting output |
DC 8.4V, 3.5A
|
|
| Applicable battery | S-8845, S-8945 | |
| Canon BP-945, BP-970G | ||
| Applicable camera | Canon XF100/105/300/305 | |
| Canon XH-A1, XL-H1 | ||
| Dimension | 136×110×47mm | |
| Weight | 0.36kg | |
