S-3602V

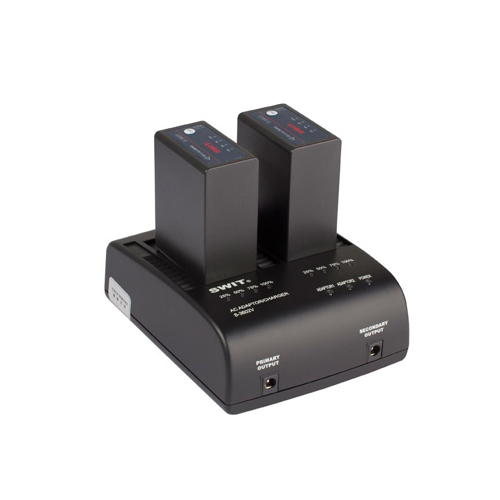

Swit S-3602V 2-ch JVC BN-VF Charger and Adapter
£99.75 ex vat
£119.70 inc vat
S-3602V is a dual channel charger for SWIT S-8823, and compatible with JVC BN-VF823 DV battery.
Dual Channel Simultaneous Charging
S-3602V has 2 charging channels, with DC 8.4V, 2A charging output for each channel, and can charge 2 batteries simultaneously. The 4-level LED charging indicators are provided for each channel, which indicate the real time capacity by percentage when charging.
AC-DC Adapting Output

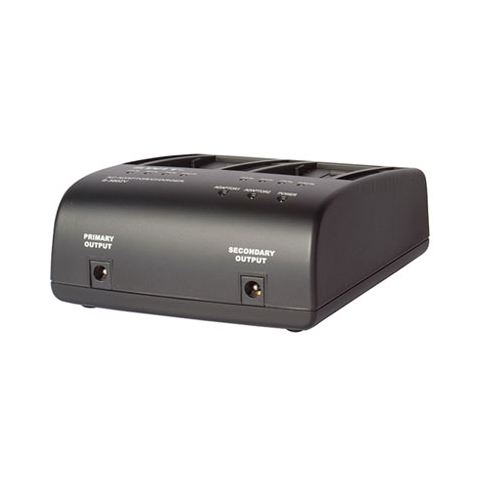

S-3602V has 2x 5.5mm/2.1mm pole sockets for DC adapting output. The DC outputs work simultaneously and provides DC 8.4V, 4A in total.
Advanced Charging Curve
Li-ion charging follows a two-period approach. The first period is constant-current. The battery is charged at the maximum charging rate. When the battery reaches a specified set-point voltage, charging circuits switch to the second period: the constant-voltage period. The charging circuit will provide only enough current to maintain the voltage, to prevent the battery from over charging.
Multiple Safety Protection Design
SWIT charger can identify different chemical types of batteries, and provide the correct charging program, to protect the batteries from over current, over charging, high temperature, etc.
Key Features:
| Power input | AC 100V-240V 50/60Hz | |
| Charging output | DC 8.4V, 2A×2 | |
| Adapting output |
DC 8.4V, 3.5A
|
|
| Applicable battery | S-8823 | |
| JVC BN-VF823 | ||
| Dimension | 136×110×47mm | |
| Weight | 0.36kg | |
