AWPB-1W-VHF
Frequency Range: 175-240Mhz
£695.00 ex vat
£834.00 inc vat
The UHF AWPB-1W amplifier delivers up to 1W output power with 12 dB small-signal gain, excellent gain flatness, wide dynamic range, and a low Noise Figure. It is designed to boost low-power radio microphone transmitters to a full 1W for applications such as sports audio links, car-to-car recording, IEM TX range extension, and similar long-range needs.
A custom-tuned, highly selective band-pass filter in the output stage sets the operating frequency range and effectively suppresses 2nd and 3rd harmonics.
Gain can be adjusted in 0.5 dB steps via the intuitive OLED interface. A real-time DC voltmeter monitors input voltage continuously, and the Lock Menu prevents unintended changes to user settings.The booster is compatible with any UHF wireless transmitter operating within the same tuning range, including Digital, Hybrid FM and Analog FM systems. Its wide input dynamic range accepts transmitter power levels from 0 dBm (1 mW) up to +18 dBm (63 mW).The AWPB-1W features a compact, custom-designed enclosure with an integrated heat sink and advanced PCB thermal design to minimize heat build-up. The CNC-machined aluminium housing is black-anodized and laser-marked, providing durability and reliable performance in demanding environments.
Key Features:
Power Up to 1 Watt
Instantly boost low-power transmitters to a full 1W for long-range, reliable coverage.
12 dB Gain
Clean, stable amplification with excellent gain flatness.
Ultra-Selective Band-Pass Filtering
Custom-tuned output filter for maximum signal purity and harmonic suppression.
Wide Frequency Options
Available in multiple UHF bands from 470 MHz to 960 MHz.
Adjustable Gain in 0.5 dB Steps
Fine-tune performance on the fly with an intuitive OLED display.
Built-In DC Voltmeter
Real-time voltage monitoring for peace of mind during critical events.
Lockable Settings
Prevent accidental changes with the secure Lock Menu.
Compatible with Any UHF Transmitter
Works with Hybrid FM and Analog FM across a wide input range (0 dBm to +18 dBm).

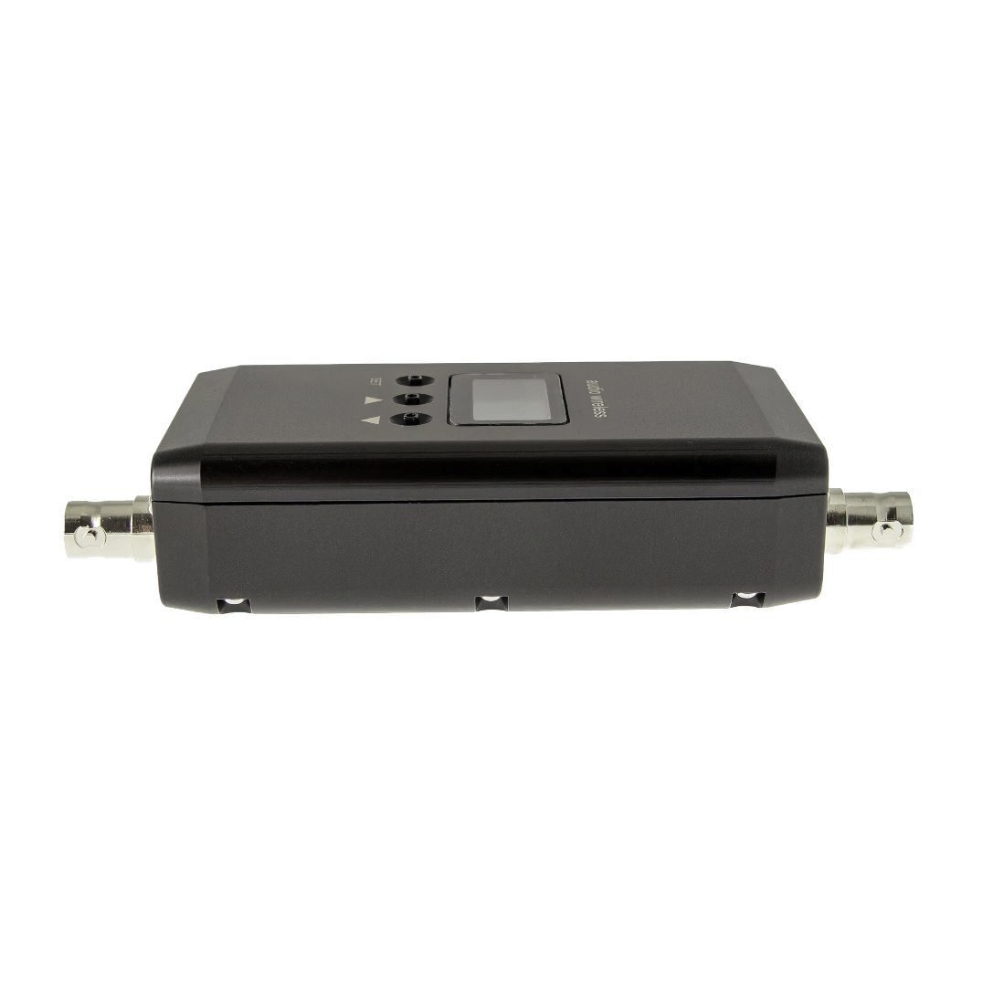

Rugged CNC-Machined Housing
Durable, black-anodized aluminium body designed for harsh environments.
Cool & Compact
Integrated heat-sink design and advanced PCB thermal optimisation for dependable performance.
| Technical Specification | |
| Maximum RF Output Power | 1Watt (+30dBm) |
| Gain | 12+/-2.0dB user adjustable in 0.5dB steps (+13dB nom.) |
| Nominal RF output power |
0.8Watt (800mW) with TX output at 50mW (1 Watt nom.) |
| Gain range | +12dB to 0dB, adjustable in 0.5dB steps |
| OIP3 | > +48dBm |
| Noise Figure |
< 3 dB |
| Maximum input power | +18dBm (63mW) at Gain setting 12dB |
| Frequency Bands available | 470-608MHz, 470-700MHz, 470-865MHz, 500-865MHz, 500-960MHz |
| Harmonic rejection | >30dB(min) |
| Connections | |

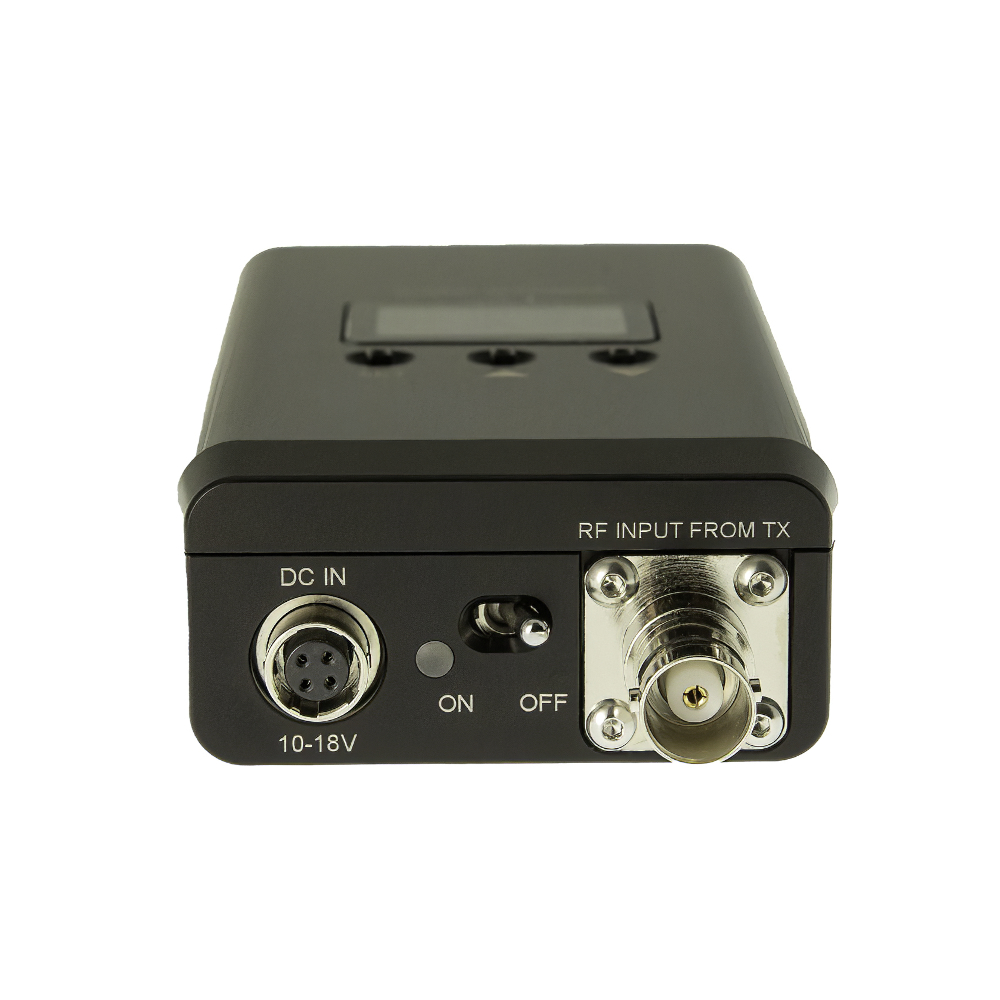

| RF Input | Standard BNC-F Socket, 50 Ω |
| RF output | Standard BNC-F Socket, 50 Ω |
| Hirose DC input | 4-pin Hirose (pins1+2: 0V, pins3+4: +ve) |
| Powering | |
| Operating voltage range | 10-18V, input reverse power, and short circuit protected |
| Current Consumption | 4W (max) |
| Main ON/OFF Switch |
2-way Toggle switch with Red LED - ON - indicator |
| Outer Case | |
| Dimensions | 137x58x28mm (W x H x D) (inc. BNC connectors) |
| Weight | 295g |
| Related Accessories |
1 x SMA to BNC-M link cables (custom lengths) 1 x BNC-M to BNC-M Antenna extension cables (custom lengths) 1 x QWA (Wide-Band Quarter Wave Antenna) (470-900MHz) 1 x LPDA-P Antenna |
