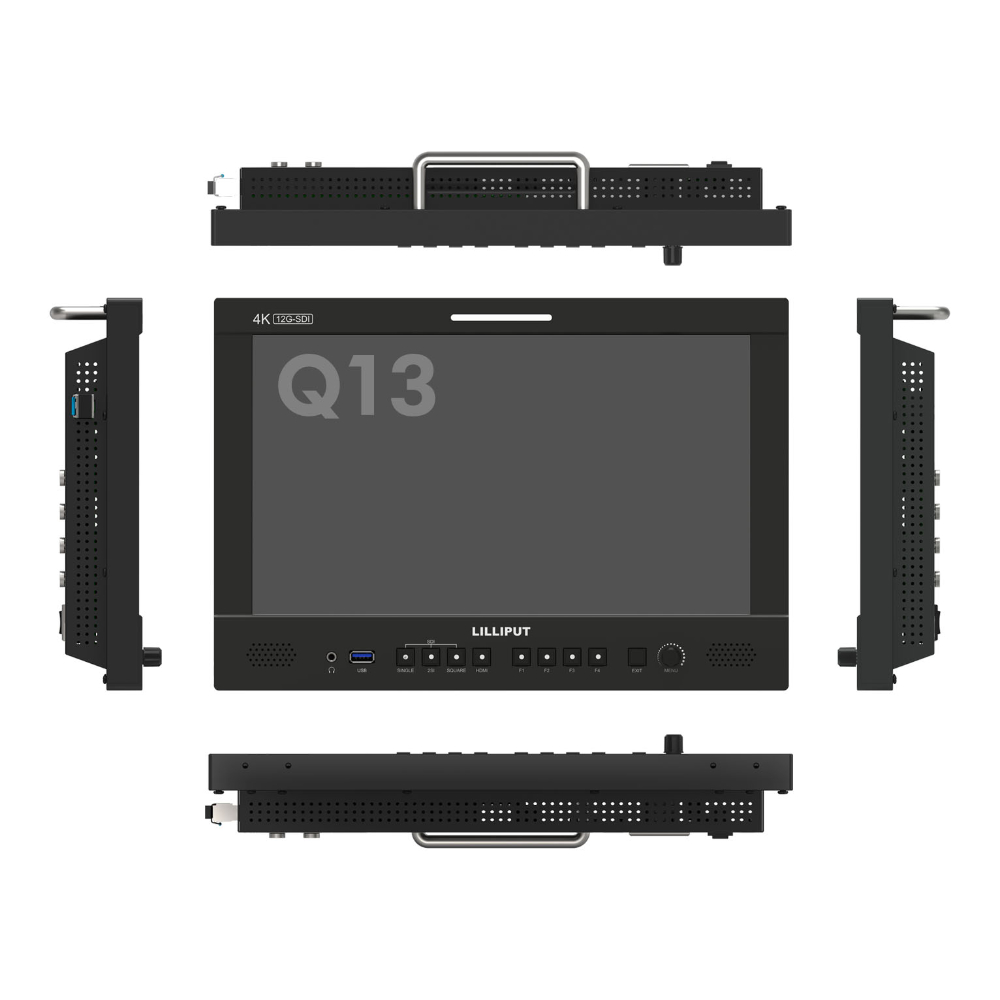

Lilliput Q13 - 13.3" 12G-SDI Broadcast Studio Monitor

The Lilliput Q13 is a professional studio monitor, packed with features and facilities for the professional photographer, videographer, or cinematographer.

Compatible with a multitude of inputs – and featuring the option of a 12G SDI and 12G-SFP Fiber Optic input connection for broadcast quality monitoring, It also features Audio Vectoring using the standard Lissajous graph shape a- llowing you to visualize the depth and balance of a stereo recording. You also can connect the Q13 to a computer / laptop which will allow you to control the monitor via applications.

Display
Aspect Ratio	16 : 9
Brightness	300 cdm²
Colour Space	Can Calibrate to REC.709 with optional calibration unit
Contrast Ratio	1000:1
Resolution	3840 x 2160
Viewing Angle	178° / 178°
HDR	ST2084 300/1000/10000/HLG
LUT Support	3D LUT (.cube format)
Screen Size	13.3"
Supported Log Formats	SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User...
Remote Control
GPI	1
LAN	1
RS422	In / Out
Supported Formats
HDMI Formats Supported	2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080i,50/60, 720p 50/60
SDI Formats Supported	2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080pSF - 24/25/30, 1080i,50/60, 720p 50/60
SFP Formats Supported	2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080pSF - 24/25/30, 1080i,50/60, 720p 50/60
Monitor Specification

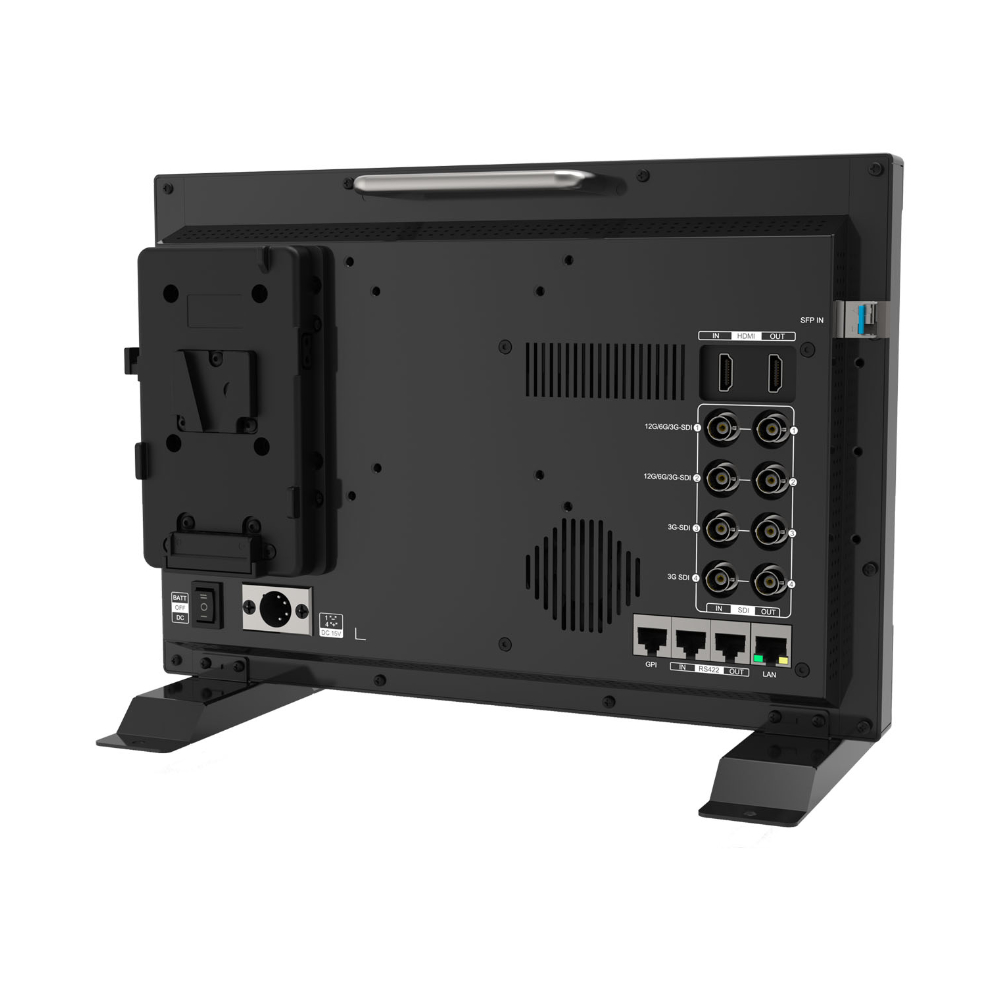

Video Inputs	SDI - 2x 12G, 2x 3G (Supported 4K SDI Formats Single / Dual / Quad Link) - 1x HDMI 2.0 - 1x SFP (Optional)
Audio Outputs	SDI - 16ch, 48KHZ, 24 Bit // HDMI - 8ch, 48 Khz, 24 Bit // Ear Jack - 3.5mm // Speakers x2
Power
Compatible Batteries	V-Mount or Anton Bauer Mount
Input Voltage	DC 12V - 24V
Power Consumption	<-31.5W (15V)
Environment
Operating Temperature	-20°c to 60°c
