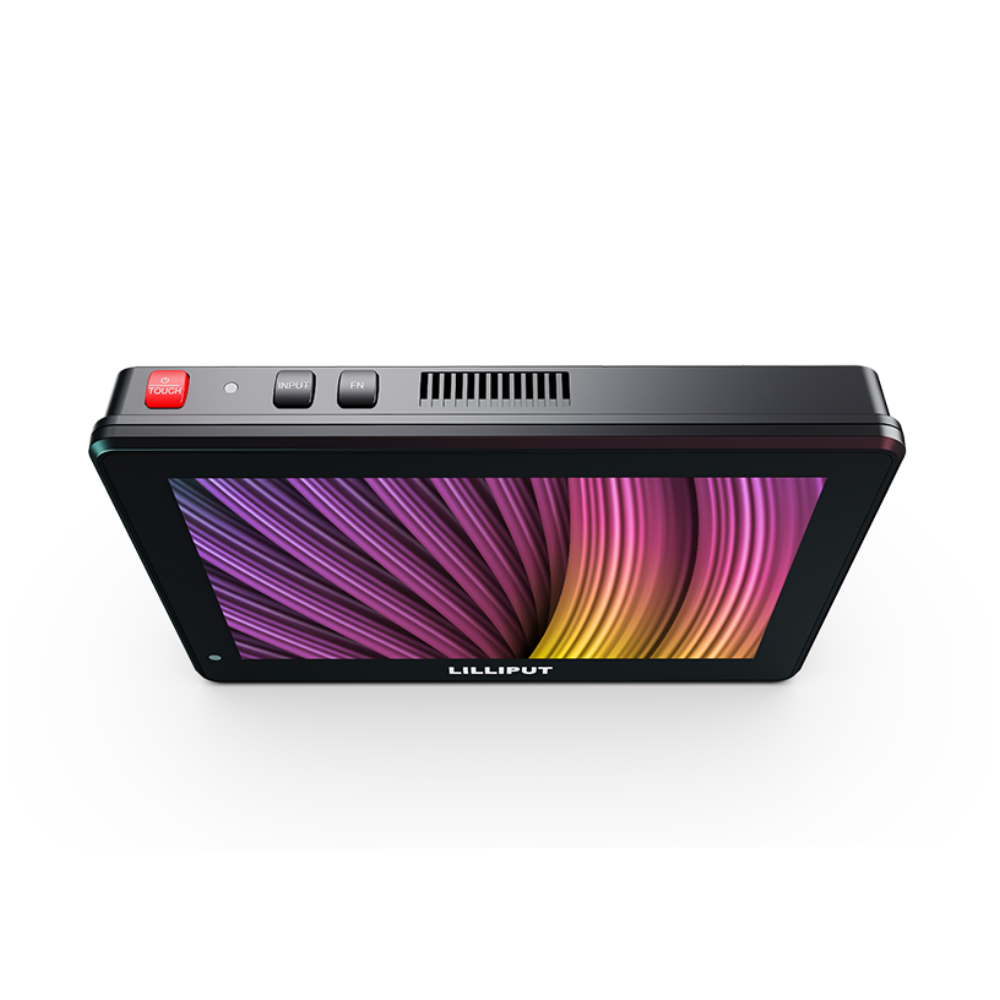

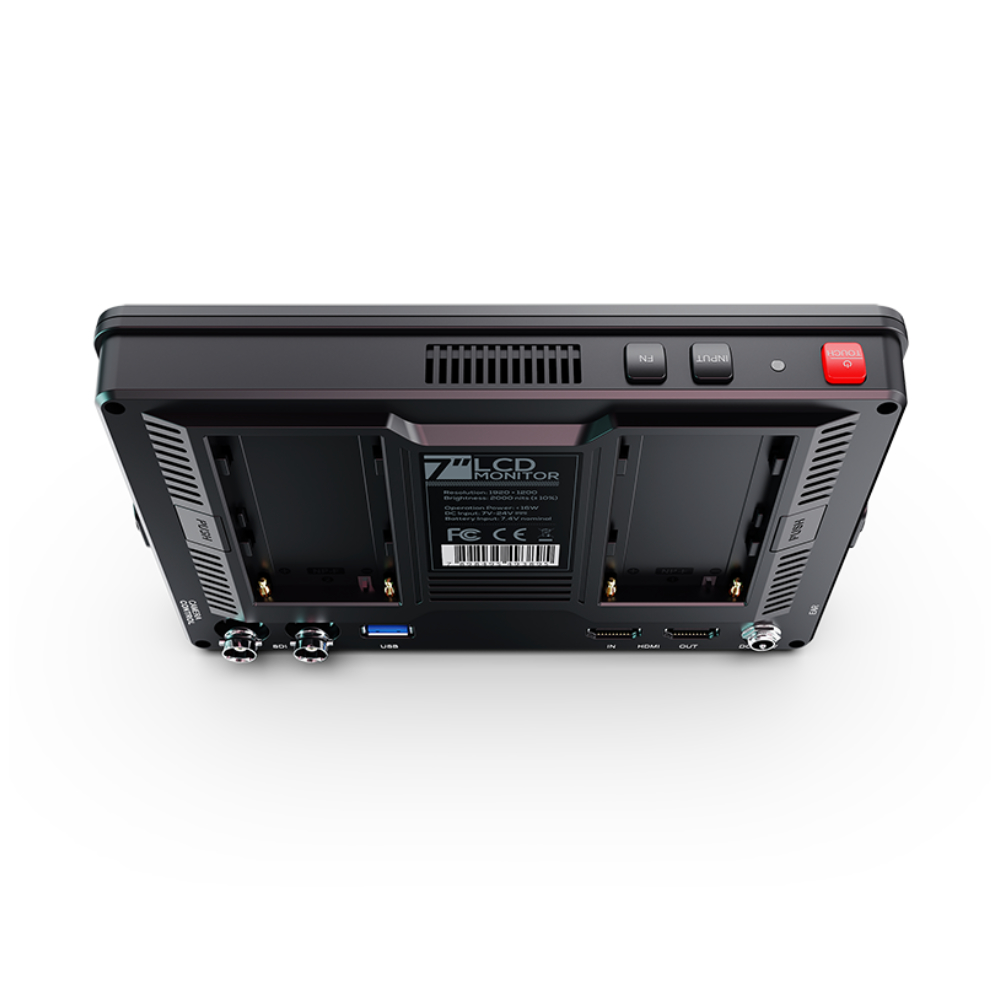

HT7S is a precision on-camera monitor with an amazing 2000 nits Ultra High Brightness and innovative Touch LCD screen, capable of controlling your video camera's menu on set. A solid piece of kit, it is designed specifically for the outdoor photographer and film maker.
| Audio | |
| Speaker | 1 |
| Audio In / Out (48 kHz PCM Audio) | |
| Ear Jack | |
| HDMI Audio Frequency | 8ch 24 Bit |
| Display | |
| Aspect Ratio | 16:10 |
| Brightness | 2000 nits |
| Colour Space | 100% BT.709 |
| Contrast Ratio | 1200:1 |
| Resolution | 1920 x 1200 |
| Touch Panel | Capacitive Touch |
| Viewing Angle | 160° / 160° |
| HDR | HLG; ST2084 300/1000/10000 |
| Screen Size | 7" LCD |
| Connections | |
| HDMI Video Input | 1x HDMI 2.0 |
| SDI Video Input | 1x |
| SDI Video Output | 1x |
| HDMI Video Output | 1x HDMI 2.0 |
| Formats | |
| SDI Formats | 1080p 24/25/30/50/60 - 1080pSF 24/25/30 - 1080i 50/60 - 720p 50/60 |
| HDMI Formats | 2160p 24/25/30/50/50 - 1080p 24/25/30/50/60 - 1080i 50/60 - 720p 50/60 |
| Size | |
| Dimensions | 186mm x 128mm x 29mm |
| Weight | 520g |
| Power | |
| Input Voltage | DC 7-24V |
| Power Consumption | =< 16W (15V) |
| Environment | |
| Operating Temperature | 0°c - 50°c |
| Storage Temperature | -20°c - 60°c |
