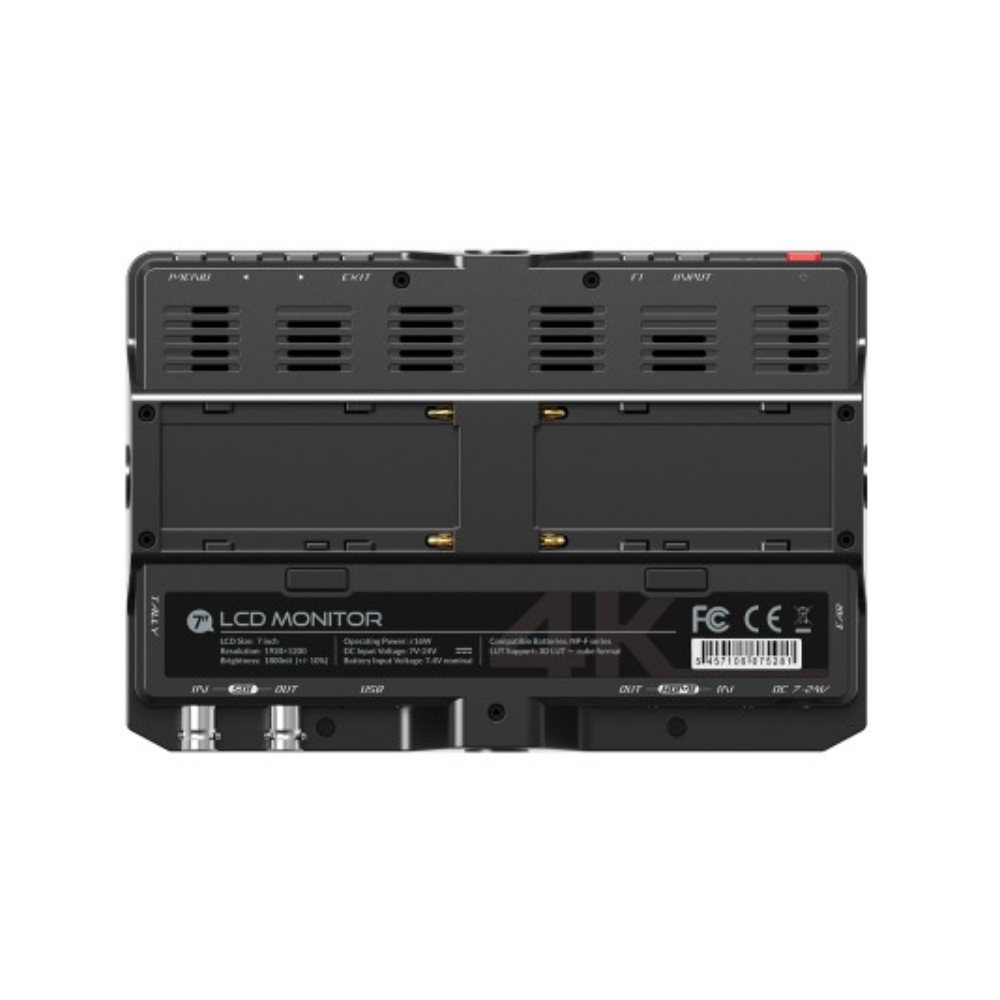

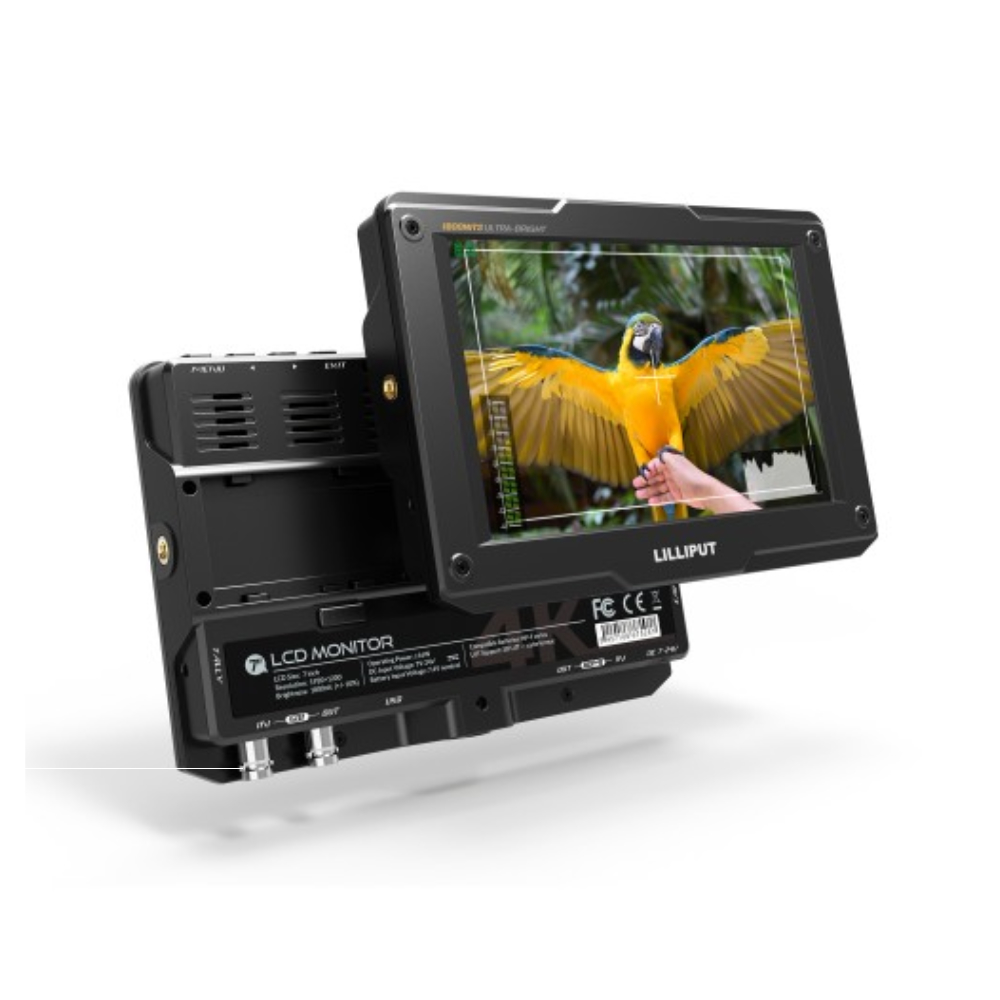

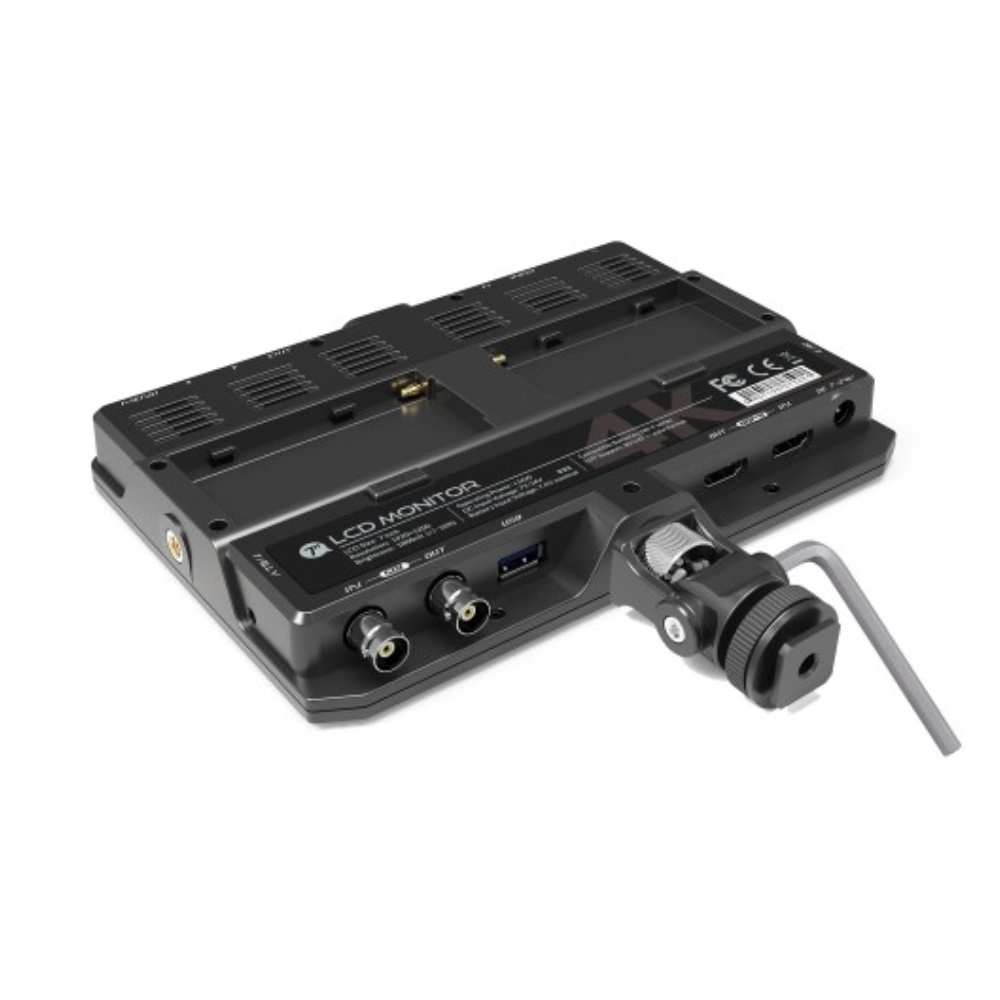

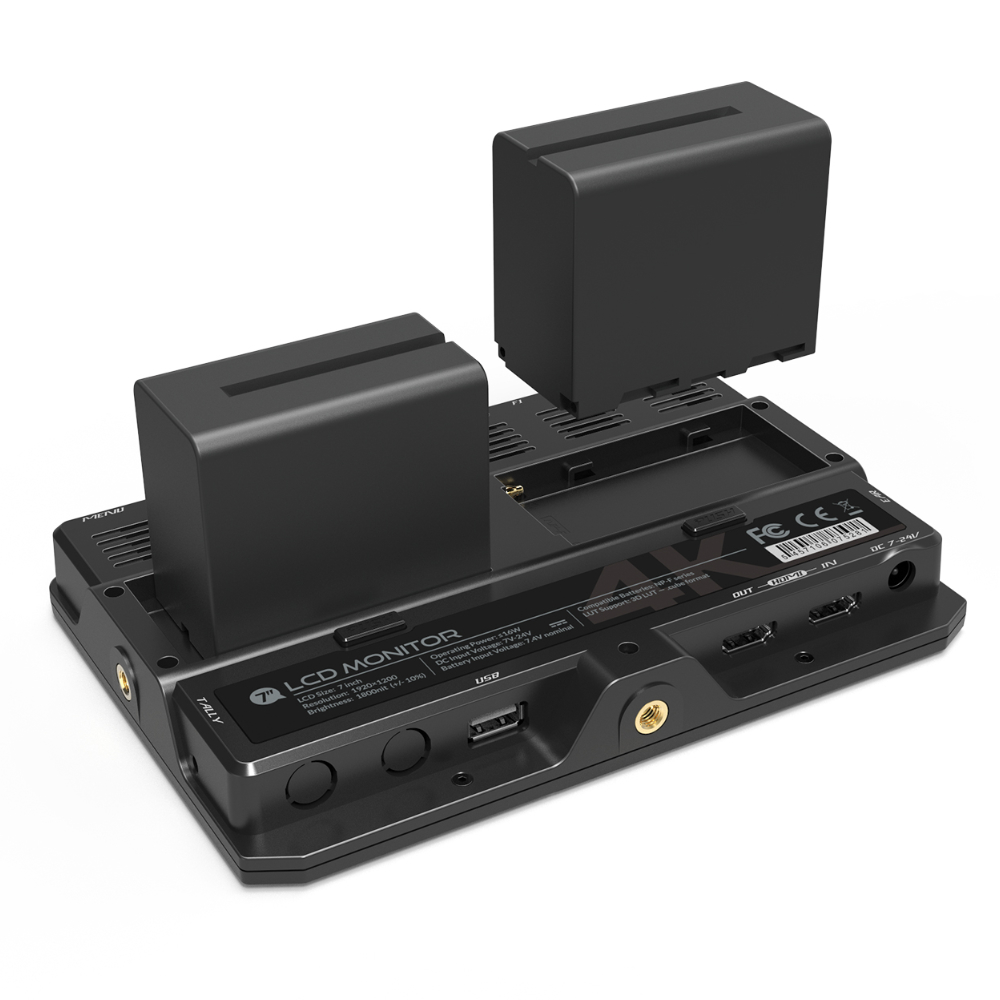

H7S
7" 4K **HDMI + SDI** Sunlight Readable Monitor
£223.00 ex vat
£267.60 inc vat
The Lilliput H7S is designed specifically for use outdoors or in high brightness environments. Boasting 4K HDMI 1.4 input, 3G SDI and pass through options, and featuring an 1800 nit (cdm²) panel, the Lilliput H7S is designed for situations when a normal monitor screen just won't cut it.
| Monitor Specification | |
| Aspect Ratio | 16:10 |
| Display | 7" LCD |
| Native Resolution | 1920 x 1200 |
| Maximum Resolution | 2840 x 2160 |
| Input Voltage | DC 7-24V |
| Pixel Pitch (mm) | 0.07870 (H) x 0.07875 (V) |
| Power Consumption | <=16W (12V) |
| Brightness Ratio (cd/m2) | 1800 |
| Contrast Ratio | 1200:1 |
| Video Inputs | 1x HDMI 1.4 |
| Video Outputs | 1x HDMI 1.4, 1x Tally |
| Audio Outputs | Speaker x1, Headphones (3.5mm) x1 |
| Size | |
| Dimensions | (L) 225mm x (W) 155mm x (D) 23mm |
| Weight | 535 g |
| Environment | |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -10°C to 60°C |
