Wisycom MTP61

**Stock Listed is Band UK1**

The smallest and lightest multiband bodypack transmitter on the market, the MTP61 has a wide tuning range (470 to 663MHz + DME band). The compact design of the MTP61 not only makes it comfortable, but also ideal for location sound and theater applications alike. It is equipped with a Bluetooth module which allows to adjust parameters in real time via mobile device apps. It offers embedded recorder to record directly on the internal 64 GB micro SD card and an integrated Linear Time Code decoding.

Features:

• The multi-band MTP61 currently has the widest tuning range of any wireless transmitter on the market (470 to 1260 MHz)
• Monitor & control with Bluetooth via Wisycom Manager software or mobile device apps to adjust parameters in real time
• Advanced linear technology eliminates intermodulation distortion for more robust signal, extended range, and the ability to operate multiple transmitters in close proximity to each other without needing an intermod frequency plan
• The embedded recorder allows you to record directly on the internal 64 GB micro SD card and integrated Linear Time Code decoding
• DSP based signal processing allows easy switching between wide and narrow band operation
• ENS compander for a totally clear sound
• Powering with Lithium-ion battery Model CS-BCE10 (Part No. CGA-S008E 3.7V, 1050 mAh, 3.9Wh Cameron Sino)
• Bluetooth interface and mobile app allows full control from mobile or tablet
• Integrated low-pass audio filter eliminates ultrasonic interference from devices such as focus pullers
• Front panel buttons to quickly enter menu thanks to its multiple shortcut combinations

Whats in the box:

MTP61 Transmitter
AWSS Whip Antennas

• UK1: AWSS-522, AWSS-646 and AWSS-K1
• UK2: AWSS-590, AWSS-507 and AWSS-K1

BCLW belt clip

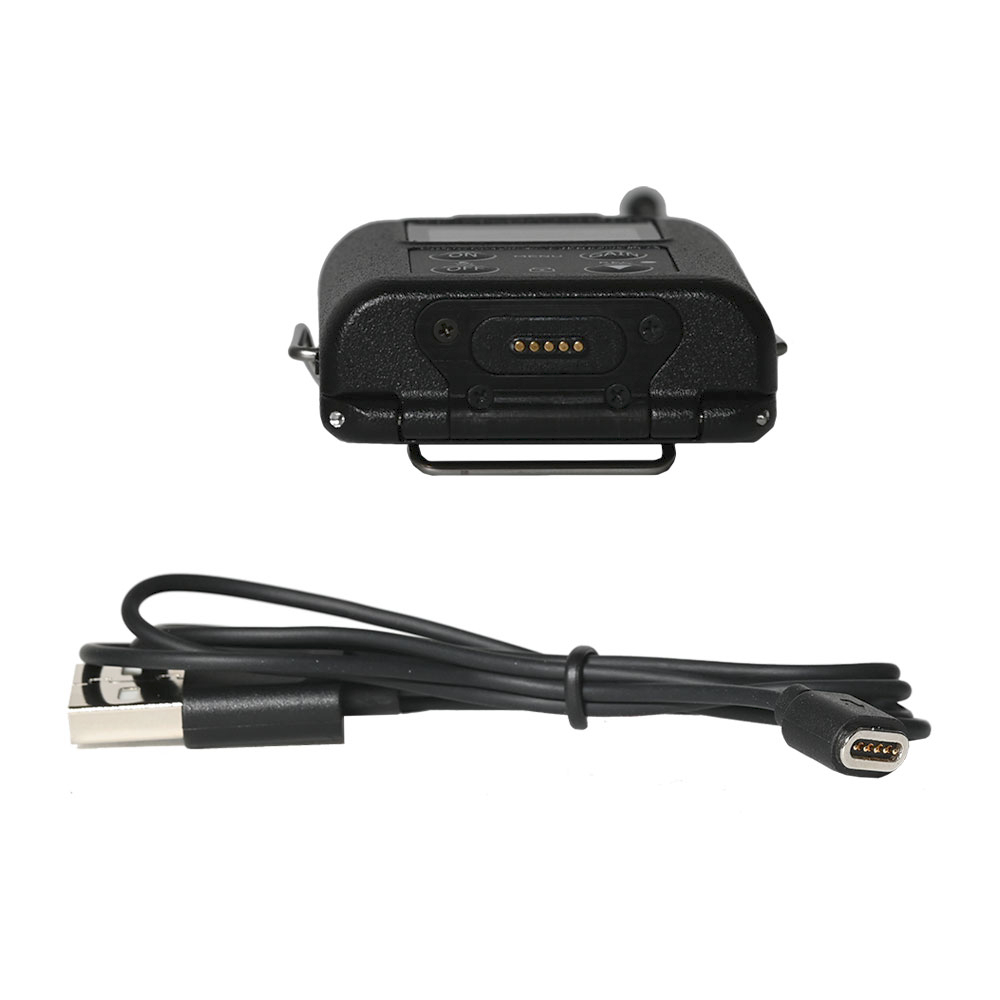

USB charge & sync cable
2x LBP61 Li-Ion rechargeable battery
Wisycom branded carry case

Whats in the box:

• MTP61 Transmitter
• AWSS Whip Antennas
• BCLW belt clip
• USB cable
• 2 x LBP61 Li-Ion rechargeable battery

Frequency range: from 470 to 1260 Mhz
Switchable channels: 2400 managed in 40 groups ofr 60 frequencies completely user programmable
Switching-window: Up to 362 MHz, depending on band (see Configurations)
Frequencies: Quartz PLL frequency synthesizer circuit (5 kHz step)
Frequency error: ±2.5 ppm, in the rated temperature range
RF Power: 10mW/ L10 W/ 20 mW/ L20 mW/ 50 mW/ 100 mW (on specific configurations)
Antenna connector: SSMA
Modulation: Wideband and Narrow-band with DSP based digital signal processing
Nominal deviation: ±40 kHz Wideband / ±25 kHz Narrowband
Peak deviation: ±56 kHz Wideband / ±35 kHz Narrowband
Spurious emissions: < 2 nW
Telemetry feature:
- TX transmits also a digitally modulated sub-carrier, suitable for:
- tone-squelch operating
- remote battery monitoring, compander and modulation control
- optional PTT (push to talk) operation
Noise Reduction system: ENS – Wisycom ultra-high permorfmance compander
AF bandwidth Audio frequency response (dBa)
in NarrowBand mode (NB): 45 Hz ÷ 17 KHz (3dB)
in WideBand mode (WB): 45 Hz ÷ 20 KHz (3dB)
Distortion: < 0.3 % (0.15 % typ.)
SND/D ratio (Analogue):
typ. 115 dB (A)rms with 40 kHz deviation; typ. 121 dB (A)rms with 56 kHz deviation Wideband
typ. 115 dB (A)rms with 25 kHz deviation; typ. 121 dB (A)rms with 35 kHz deviation Narrowband
Audio input connector: LEMO 3pin
Audio input level: from -40 dBu (12mV RMS) to 10 dBu (2.5 V RMS) adjustable in 1 dB steps
input dynamic extension with an integrated limiter
Max input level: +10 dBu (2.5 V) at clipping
Storage media: internal 64 GB micro SD memory card (industrial grade heavy duty)
Time code: Linear Timecode decoding
Bit rate: 24 bit / 32 bit
Sampling rate: 48 kHz
Managing interface: Bluetooth 5.2 low energy, proprietary waterproof magnetic connector 5 pin (USB HS + power + LTC)
LED: 3 RGB LEDs (red, green and blue) for audio, RF, battery status and battery charger
Battery level indication: percentage or minute/second
PTT function: Pin 3 of AF connector can be controlled via an externall PTT button
Display: High contrast OLED white display (128 x 64 pixels)
Power supply: Cameron Sino Lithium-ion battery Model CS-BCE10 Part No. CGA-S008E (3.7V, 1050 mAh)
Battery life: approx. 8 hours @ 10mW
Temperature range: -10 ÷ +55 °C
Dimensions: 58,3mm x 47mm x 17mm (HxWxD) without clip
Weight: Approx. 72 g. without battery, 94 g. with battery
