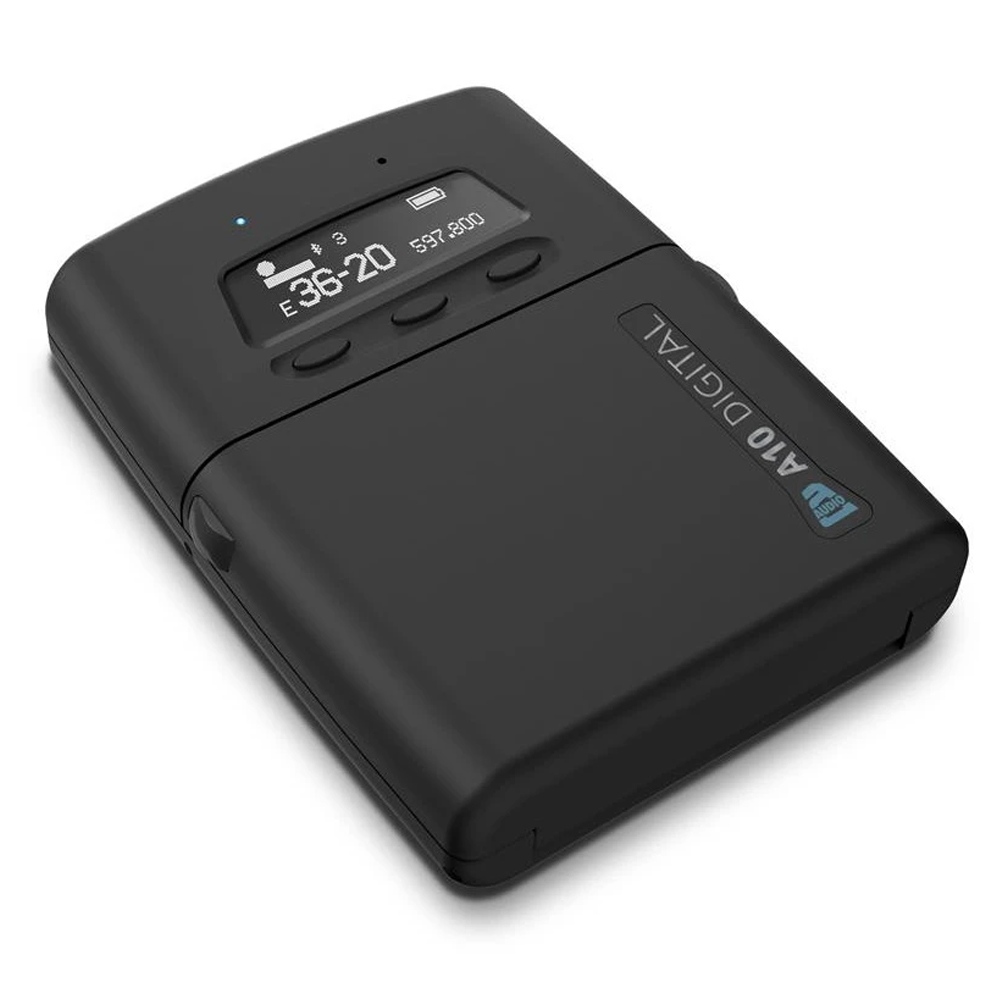

A10 Digital Body Pack Transmitter
A10-TX
The A10-TX transmitter is the heart of the A10 Digital Wireless System. And the core of the A10-TX transmitter is its low-noise, high-dynamic-range analog input. It accepting signals from low-level lavalier microphones to balanced line-level. The 3-pin LEMO input offers analogue limiters, 5 volt bias for lavalier microphones, as well as 12 and 48 volt phantom power for balanced microphones.
A timecode-enabled recorder is integrated into the A10-TX. It records timecode-stamped files to removable microSD cards. After recording the proprietary .mic file requires conversion to WAV file using Mic2Wav utility software for macOS and Windows.
Transmitter Bandwith **
The UK and International models are avialble on three frequency bands detailed below. There are two US only models available. Information for these is available in the A10-TX-US User guide on the Audio Ltd website.
* Incorporated UK Channel 38.
** Please select required Band from product options.
| A10 Digital Wireless System Frequency Range | 470 - 694 MHz |
| Transmitter Switching Bandwidth |
A10-TX-A (470–548 MHz) transmitters are tunable in 25 kHz steps style="box-sizing: inherit;" /> |
| Modulation Mode | Audio Ltd proprietary digital RF modulation |
| Digital Audio Codec | Audio Ltd proprietary, high-performance digital encoding algorithm |
| Audio Frequency Response | 20 Hz–20 kHz |
| RF Output Power | 10 mW, 20 mW, 50 mW, selectable |
| Audio Gain Control | 0-40 dB in 10 steps, menu and remote control |
| Low Frequency Cut | flat, 50 Hz, 80 Hz, 120 Hz, 200 Hz, user selectable |
| Input Connector | 3 pin Lemo (series 00) |
| Input Type | Microphone or line level, balanced or unbalanced |
| Bias and Phantom Power | 5 V Bias, 12 V or 48 V phantom power |
| Menu and Controls | OLED menu display, 3 button navigation |
| Powering | 2 x 1.5V LR6 AA size, lithium, NiMH, or alkaline |
| Privacy | User settable Audio Ltd proprietary |
| Operating Temperature Range | -10 °C to +55 °C |
| Weight and Dimensions | 104 g, 83 x 64 x 18 mm |
