Wisycom MRK16 Multi Slot Rack

The Wisycom MRK16 – Multi Slot Rack Unit is a modular wireless-microphone receiver system that fit up 16 channels in a compact 19” 1RU aluminium chassis. It accepts up to 4 MCR54 receivers, providing antenna distribution, RF filtering and advanced audio routing (analogue, AES3 and Dante).

Please note - There are several versions of this rack avbailable, please call with your requirements.

Features:

Up to 16 true diversity channels in a 1U rack
Daisy chain up to 4 racks for 64 channels in only 4u
Multiple audio output options; dual Dante, digital AES72 and AES59 and analogue
Bluetooth 5 long range class 1 remote control which has 100mW instead of 1 to 3mW like most competitors over 100m range
Ultra-wideband receiver system from 470 to 1260 MHz
Dual area matrix; two discrete diversity zones selectable from the front panel or in Wisycom Manager software
RF over Fibre option for ultra-long distance reception and internal SFP port for gigabit data connection
RF inputs with 13 band pass filters automatically selected based upon the upper and lower frequency limit tuned into the receivers
Remote control of Wisycom LFA/ADFA antennas to tune gain and frequency selection
Dual redundant DC power input
Multiple PoE options to power the rack or provide power to external devices such as WiFi access points and USB-C with DC feed for control and charging

• Frequency ranges: 470 – 1260 MHz (full range)
• Filter selection: 10 automatically selected band-pass filters:
  • 470-608 MHz
  • 470-694 MHz
  • 470-832 MHz
  • 470-1260 MHz
  • 510-608 MHz
  • 510-694 MHz
  • 510-832 MHz
  • 510-1260 MHz
  • 822-1260 MHz
  • 940-1260 MHz

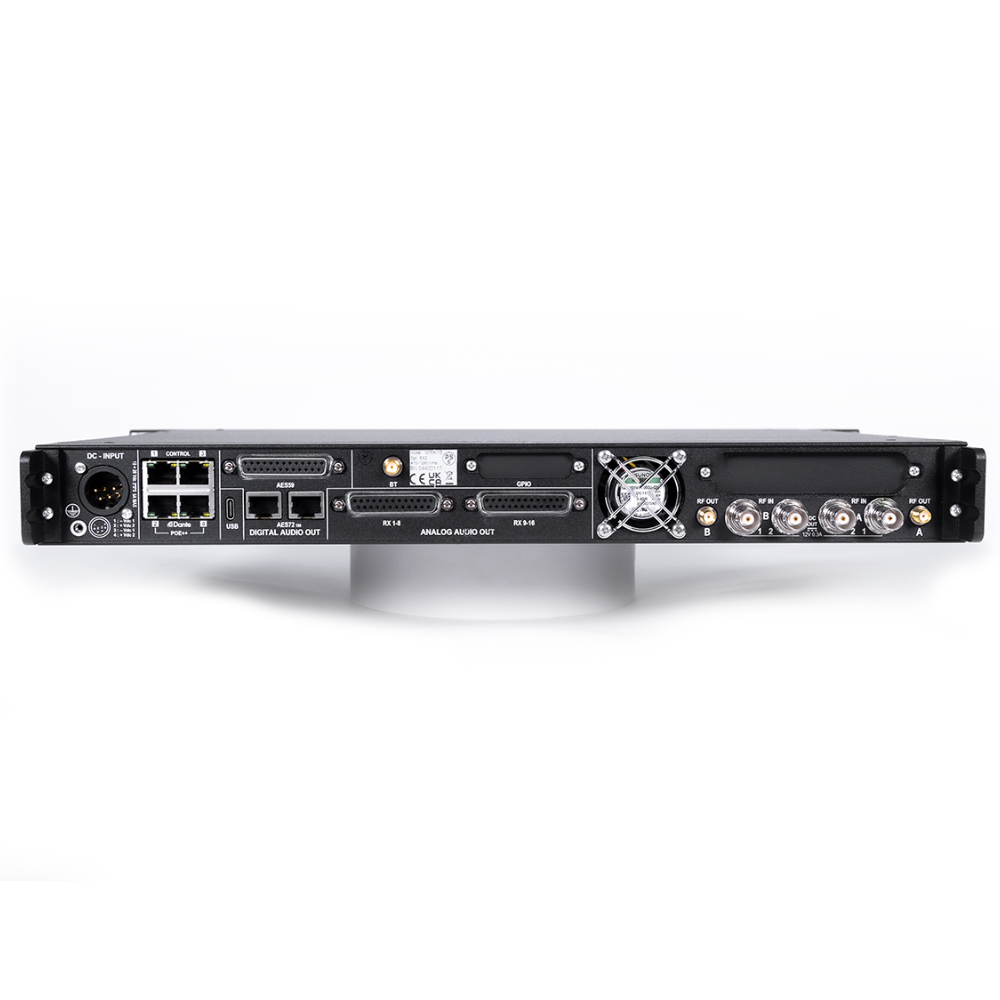

• Antenna connector: 4 x BNC type female connectors for inputs, 2 x SMA type female connectors for loop
• Antenna input impedance: 50 Ohm
• Spurious emissions: < 2 nW
• Input/output gain: 1dB ± 1
• Input/cascade gain: 1dB ± 1
• IP3: 14 dBm
• Antenna booster powering: +12 Vcc / 300 mA MAX
• Analogue audio output: 2 x DB25 connectors (TASCAM)
• Digital audio output: AES59 (DB25 connector) and AES72 1M (2 RJ45 connectors)
• Dante output: Dante Primary and Secondary (2 x 1000 Base TX RJ45 Ethernet)
• Monitor output: headphone 6.3 mm jack socket, volume adjustable with a front knob
• LED:
  • 4 LEDs indication for the zone activation status (red, green, off)
  • 4 LEDs indication for the booster status (red, green, off)
  • 4 LEDs indication for the power supply status (red, green, blue, off)
  • 1 LED indication for the MRK16 status (green, off)
• Max number of receiver slots: 4
• Max number of channels: 16 (with MCR54), 8 (with MCR54-DUAL)
• Managing interface: 2 x 1000 Base TX RJ45 Ethernet, Bluetooth 5 Long Range, USB-C and thru display menu of
• the 1st receiver on the right
• Powering:
• 10÷ 28 Vdc, 5A max, redundant DC Vdc1 and Vdc2 on XLR M-4pin
  • 1: -Vdc1
  • 2: +Vdc2
  • 3: -Vdc2
  • 4:+Vdc1
  • PE1 option: Power Over Ethernet board:
  • dual POE++ input on eth 2/4 (redundant pwr supply)
  • POE output on eth 1 (external Wifi, Bluetooth antenna)
• Power consumption: 60W with 4 MCR54s and 4 active boosters
• Power supply output: on USB-C port to connect external device (e.g. tablet) 1.5 A max
• Temperature range: -10 ÷ +55 °C
• Dimensions: 44 x 483 x 352 mm (HxWxD)
• Weight: 4.3 Kg. with 4 MCR54s and EXP2 board, 3.30 Kg. without MCR54s
