Vokkero Guardian Show Full Duplex Comms Kit

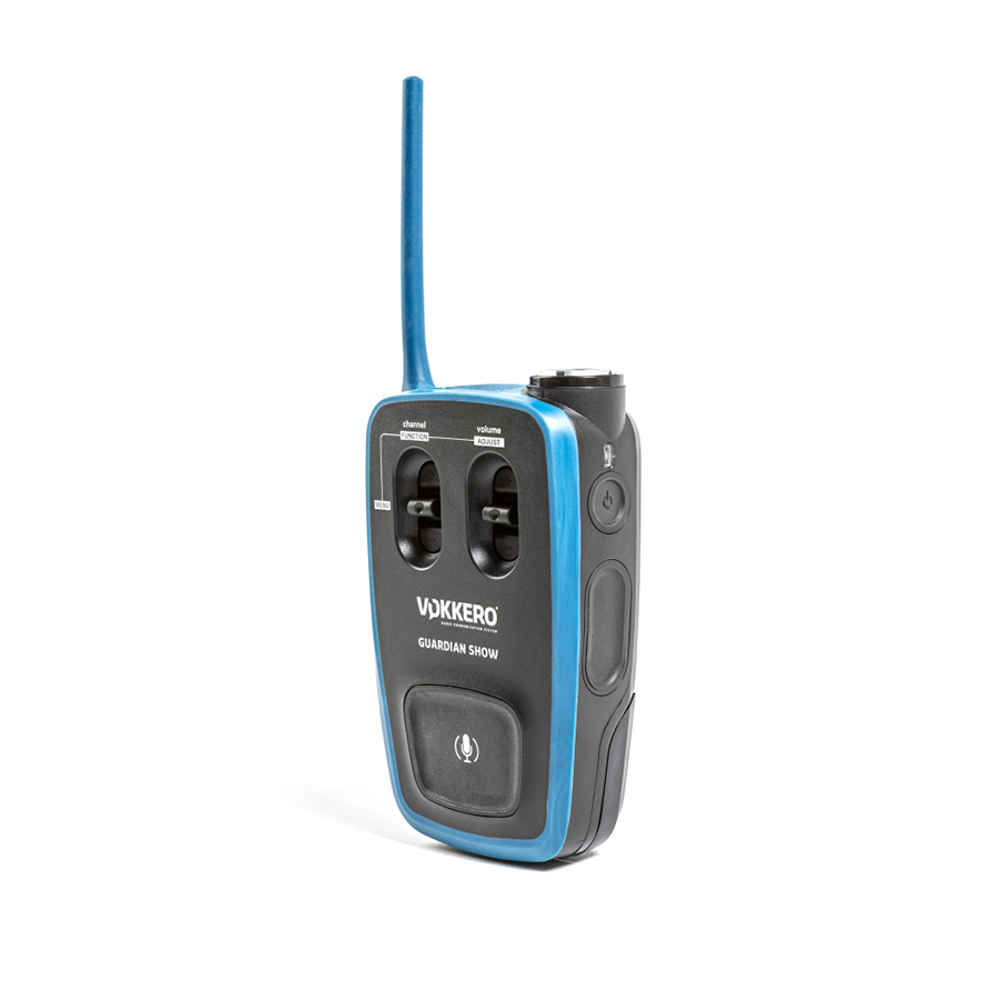

The Vokkero Guardian Show Full Duplex Comms Kit is a standalone wireless intercom system designed for audiovisual productions and live events. Available in 2, 4, 6 & 8 user kits. The beltpack units include a Bluetooth operation which links to your mobile for answering inbound calls.

** Please note: Headsets are sold separately. **

Key Features:

• 1.2 km radio range
• Hands-free full duplex
• Up to 4 groups
• Up to 8 simultaneous full duplex operation with selectable priority for a single specific user
• Lightweight and robust beltpack
• Crystal-clear sound in noisy or whisper quiet environments
• Voice Gate Mode – Only allows TX when spoken words are present.
• Bluetooth operation for inbound mobile calls
• The Guardian Show is Licence-free, it operates on 10 available radio channels, with adjustable RF power up to 500mw, set between 829.250mHz and 869.525mHz, featuring 4 groups per channel and an unlimited number of users, within a wide and reliable radio range.

It is easy to set up; the GUARDIAN SHOW features 3 different radio and audio presets (Rigging, Live, Studio), in order to comply with a great variety of use cases, from a noisy stage building environment to the quietness of a studio set.

For more specific setups, every parameter such as audio levels, transmitting power, voice priority status and other basic features can be adjusted either from each individual beltpack or from the configurator’s intuitive touchscreen menu.

Features:

Voice priority mode available for stage director
3 radio & audio presets (rigging, live, studio) for many use cases
Adaptable to a noisy stage building to the quietness of a studio set
Voice Gate modes and many features can be adjusted from beltpack
10 available radio channels with adjustable RF power
4 groups per channel and an unlimited number of users
Patented noise filter, suppression of surrounding noise
Bluetooth compatibility (phone and accessories): discover the tuto
Hardened digital encryption: exchanges secured by an AES 128 key
Alarm function: vibrator or audible signal

Whats in the kit:

2,4,6, or 8 intercoms – Guardian Show

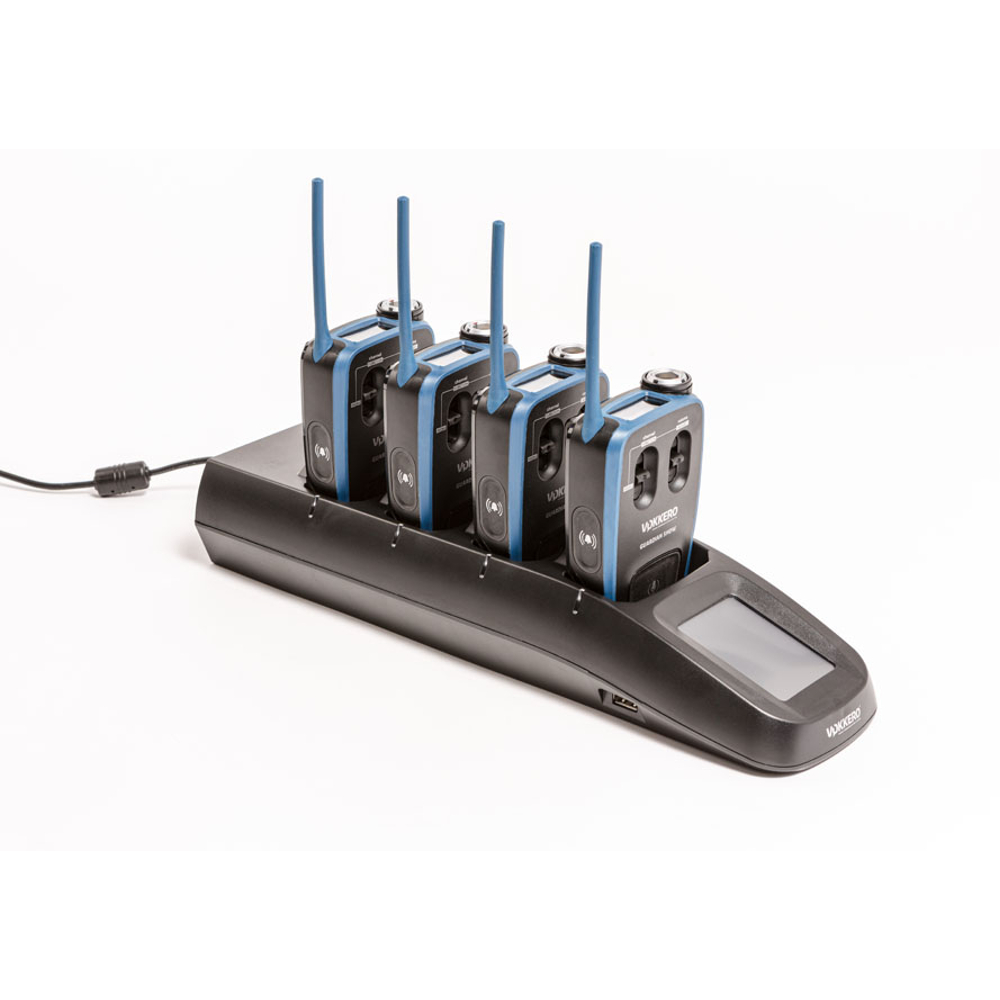

1x configurator/charging unit
1x rigid case to transport everything in a single case
1x user guide

Available Headsets:

MAE 410 – Vokkero MAE 410 Pro Audio single muff headset

MAE 420 – Vokkero MAE 420 Pro Audio double muff

PHO 421 – Vokkero PHO 421 Phonak pro headset with generic earshell

Audio: 16khz ampling rate
Range: up to 1.2 km
Battery life: up to 12 hours (rechargeable Li-Polymer battery)
10 Frequencies: royalty-free according to European (ETSI) and US, Canada (FCC) radio regulations
Weight: 190 gr (battery included)
Dimensions: 70 x 110 x 28 mm
Operating temperature: -20 / +55°C
Charging: max. 4 hours of charging time
