G4 IEM receiver with Rack Mountable Tx
EW-IEM-G4
Full control over your performance – everywhere, every day. The G4 In-Ear Monitoring Sets make your gig an extraordinary experience – not just for your audience, but also for you!
What's in the Box

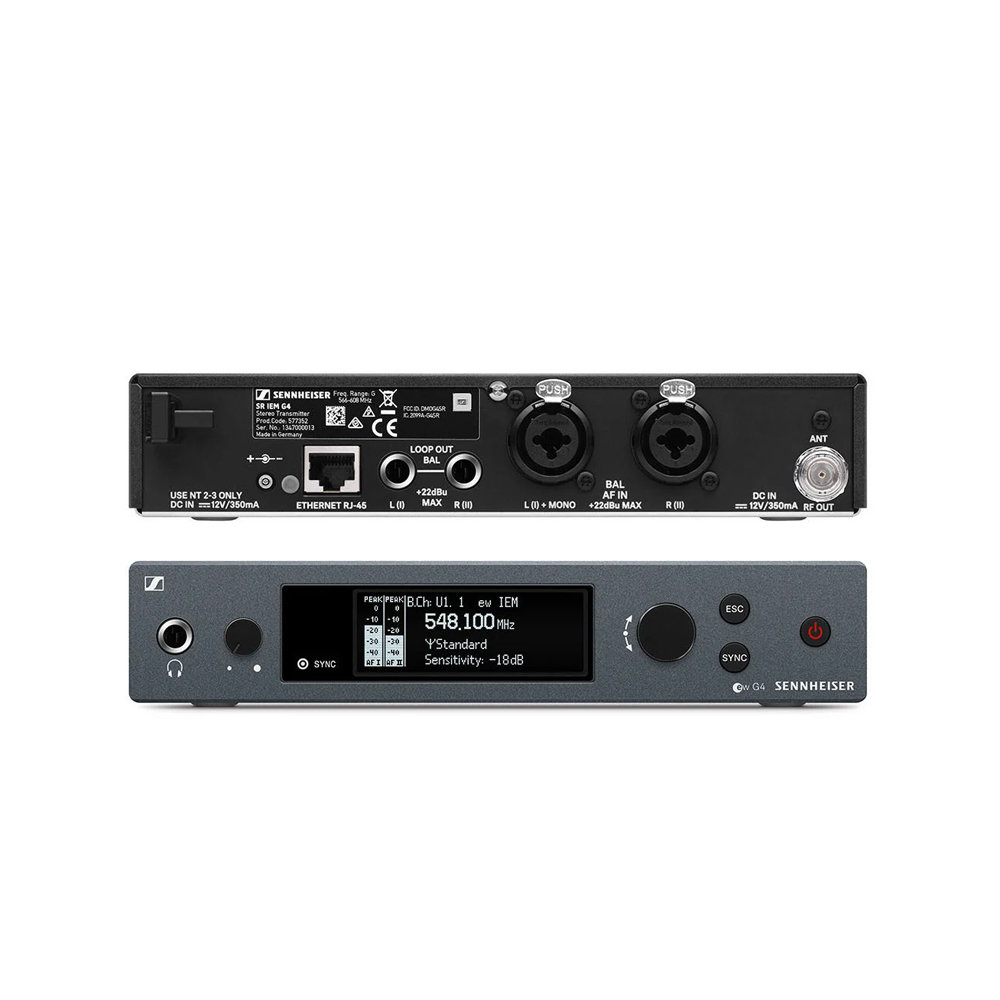

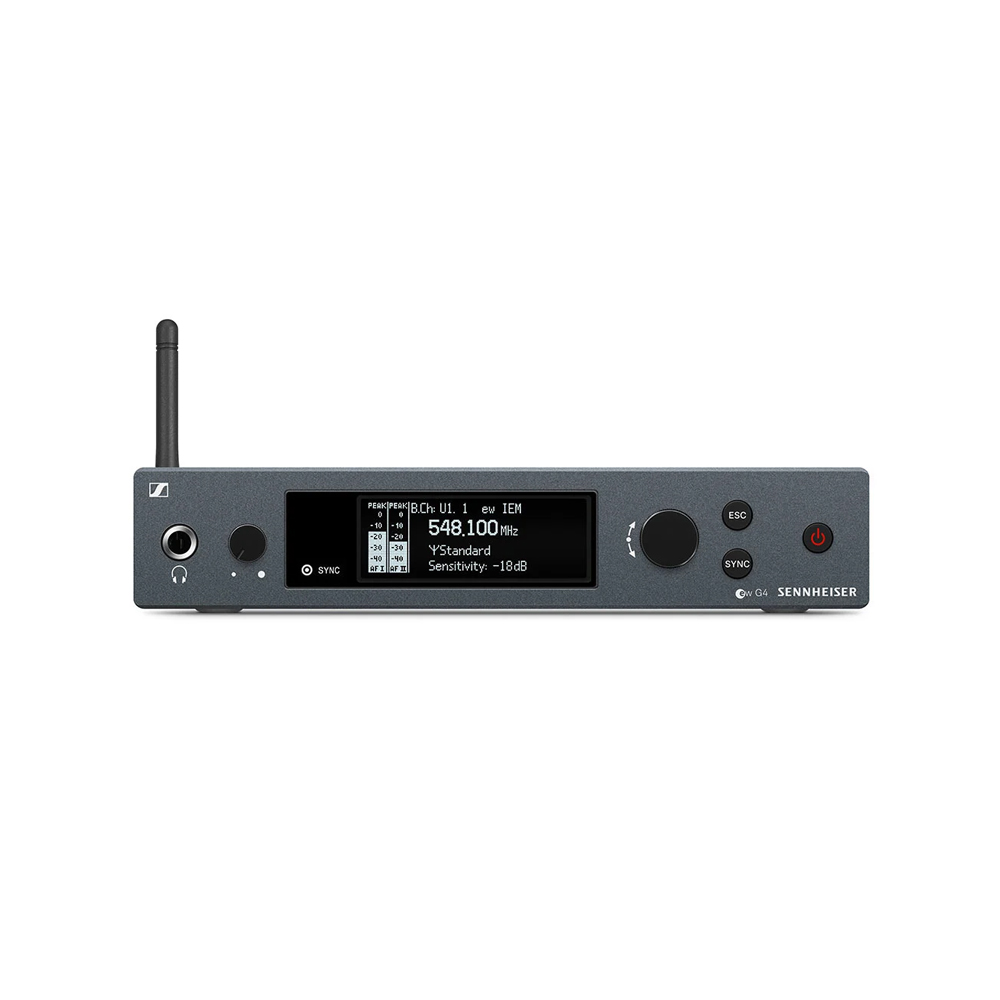

SR IEM G4
| Dimensions Approx. 202 x 212 x 43 mm |
Weight Approx. 980 g |
Frequency range Sr iem g4: D: 780 - 822 MHz |
RF output power switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW |
Nominal deviation ±24 kHz |
Current consumption max. 350 mA |
AF frequency response 25 Hz to 15 kHz |
| Compander Sennheiser HDX |
Audio input 2x XLR-3/¼" (6.3 mm) jack combo socket, electronically balanced |
Audio output ¼" (6.3 mm) stereo jack socket, balanced |
Switching bandwidth up to 42 MHz |
Modulation Wideband FM stereo (MPX pilot tone) |
Max. Input voltage +22 dBu |
Temperature Range -10 °C to +55 °C |
| THD, total harmonic distortion <0.9 % |
Frequency range 748.3 MHz - 757.7 MHz |
Signal-to-noise ratio >90 dB |
Peak deviation ±48 kHz |
Power supply 12 V DC |
Transmission frequency Max. 1680 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation, 6 frequency banks with up to 16 programmable channels |
Frequency stability ±10 ppm |
EK IEM G4
| Dimensions Approx. 82 x 64 x 24 mm |
Weight (incl. batteries) approx. 125 g |
Peak deviation ±48 kHz |
Modulation Wideband FM |
Adjacent channel rejection Typically ≥ 65 dB |
Limiter –18 dB to –6 dB, adjustable in steps of 6 dB, can be switched off |
RF sensitivity < 4 μV, typ. 1.6 μV for 52 dBA rms S/N |
Temperature Range -10 °C to +55 °C |
| Compander Sennheiser HDX |
Signal-to-noise ratio approx. 90 dBA |
Nominal deviation ±24 kHz |
Power supply 2 AA batteries, 1.5 V or BA 2015 accupack |
Audio-Output-Power 2 x 100 mW at 32 Ω |
Powering 3 V battery / 2.4 V rechargeable battery |
Squelch 5 to 25 dBµV, adjustable in steps of 2 dB |
Receiver Principle Adaptive diversity |
| THD, total harmonic distortion ≤ 0.9 % |
Switching bandwidth up to 42 MHz |
Operating time approx. 4 to 6 hours (depending on volume level) |
Current consumption at nominal voltage: approx. 140 mA with transmitter switched off: ≤ 25 µA |
Intermodulation attenuation Typically ≥ 70 dB |
Receiving frequency Max. 1680 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation, 6 frequency banks with up to 16 programmable channels |
Bass Boost +8 dB at 8 kHz |
Blocking ≥ 80 dB |
