Sound Devices

SL-2 Dual Superslot Wireless Module

SL-2

SL-2 Dual Slot Module with antenna distribution for 8-Series Mixer/Recorders

1,585.00 ex vat 1,902.00 inc vat

QTY

6 In stock

If you require a quantity greater than our current stock level, the estimated delivery for the remainder of your order will be 2 - 3 days from confirmed Shipping Date

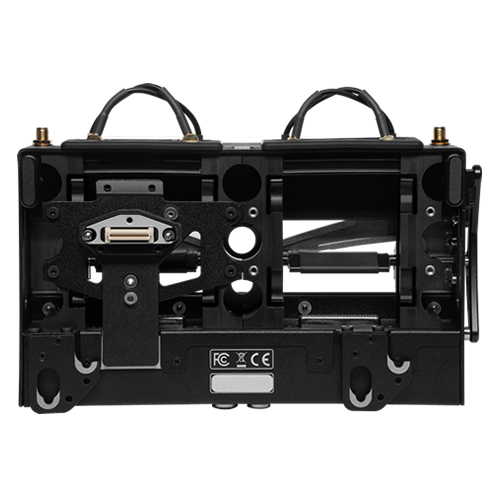

Sound Devices SL-2

Streamline your bag with the SL-2 Dual SuperSlot Wireless Module. This two slot-in wireless receiver integration system easily mounts to the top panel of any 8-Series mixer-recorder. UniSlot and SuperSlot™ wireless receivers from a variety of manufacturers are accepted, including Audio Ltd, Lectrosonics, Wisycom, and Sennheiser. The SuperSlot protocol supports up to four channels of wireless audio per slot.

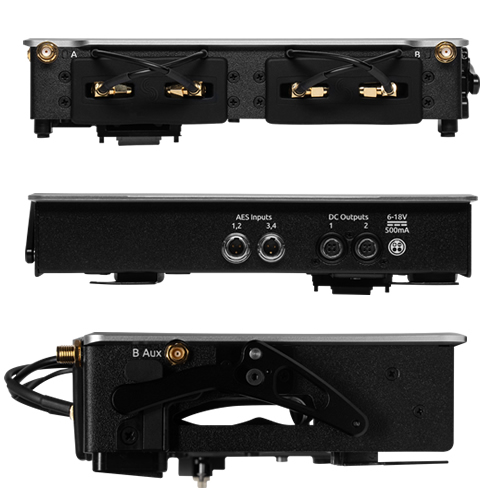

An 8-Series mixer-recorder supplies power to the SL-2 and slotted-in receivers – no external DC connector needed. Analog or digital audio is sent from the receivers into the mixer-recorder via the expansion port, reducing messy cabling for power and audio connectivity. The SL-2 offers antenna distribution to slot-in receivers, spreading out the placement of antennas for better RF performance. The rear panel of the SL-2 is equipped with two TA3 connectors for an additional four inputs of AES3 audio and two 4-pin Hirose DC Outputs, each supplying up to 500 mA for powering additional equipment.



Features

  • Compatible with the 833, 888, and the Scorpio.
  • Accepts two UniSlot or SuperSlot wireless receivers from Audio Ltd, Lectrosonics, Sennheiser, and Wisycom.
  • Built-in antenna distribution with antenna powering for active antennas or boosters.
  • Supports remote control of third party smart antennas.
  • Two auxiliary MCX antenna ports for connecting other receivers or RF distribution.
  • Two TA3 AES3 inputs for an additional 4 channels of digital audio.
  • Two DC Outputs via Hirose 4-pin connectors, each supplying up to 500 mA.
  • Powers via an 8-Series mixer-recorder.
  • Accepts either analog or digital audio from slot-in receivers.
  • Ability to set and monitor multiple functions of a SuperSlot-compatible receiver from the 8-Series mixer-recorder.
  • RF Scan with visual representation of the RF spectrum.
  • Monitor transmitter battery, receiver audio, and RF levels.
  • Rugged, lightweight, and compact design.
  • Mounts to the top of any 8-Series mixer-recorder.
  • Same width as the 833.



Which SuperSlot Receivers Are Supported By SL-2?

SuperSlot is an open standard. Wireless receivers from several manufacturers are supported, allowing you to use your favorite brand, as well as leveraging your existing transmitter and receiver investment:

  • Audio Ltd A10-RX
  • Lectrosonics SRb (with audio board update from Lectrosonics)
  • Lectrosonics SRc
  • Lectrosonics SRc-941
  • Lectrosonics SRb5P and SRc5P (Slot A only)
  • Sennheiser EK-6042
  • Sony DWR-S03D (in future firmware update)
  • Wisycom MCR42 (with SLK42-IKSS rear panel adapter from Wisycom)
  • Wisycom MCR54 (in future firmware update)

FAQ's and additional information can be found on the Sound Devices Website.



What's In The Box

  • 1x SL-2 Dual SuperSlot Wireless Module
  • 1x Bagged items for 8-Series
  • 1x Bagged items for Scorpio
  • 2x Promo stickers
  • 1x Product info sheet
  • 1x Product catalog
Powering All power supplied by host 8-series machine
Antenna
Antenna Impedance 50 ohms
Antenna Powering 12V at 200 mA, menu selectable on/off
Serial remote control, Wisycom-compatible for ADFA and LFA powered antenna etc.
Antenna Pre-select Filters Menu selectable:
Wideband/bypass (low pass filter
1.7 GHz upper cut-off)
470-614 MHz
542-694 MHz
606-770 MHz
770-960 MHz
Input RF Attenuators 0 to -1 8dB, in 6 dB steps, menu selectable
RF Outputs Auxiliary Antenna Outputs for additional receiver
DC Outputs 1-2 500 mA max (each), 6-18 VDC passed through from host 8-series machine, depending on power source. Hirose 4-pin connector: pin 4 = +, pin 1 = ground.
Aes Inputs Two pairs for a total of four channels, AES-3 balanced, 110 ohms, TA-3 connectors
Dimensions H x W x D
4.5 cm x 21.3 cm x 13.1 cm
(1.8 in x 8.4 in 5.1 in)
Weight 1.35 lbs (unpackaged)
0.61 kg (unpackaged)
