Sound Devices

HX-3 Portable Mixer Distribution Amplifier

HX-3

Headphone Distribution Amplifier with three high-performance stereo headphone feeds

£595.00 ex vat £714.00 inc vat

QTY

Estimated delivery 2 - 3 days from confirmed Shipping Date

Sound Devices HX-3

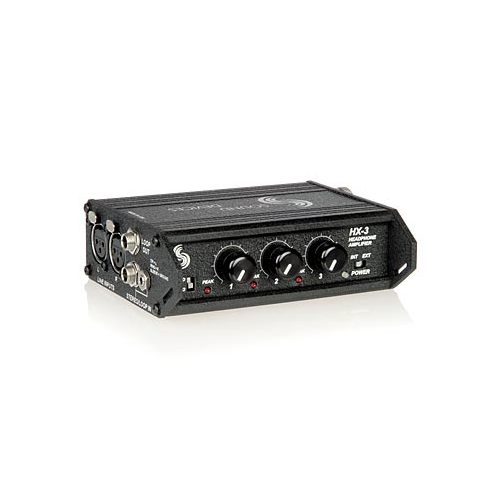

The compact HX-3 Headphone Distribution Amplifier is the perfect accessory to quickly provide three high-performance stereo headphone feeds with individual level controls from line-level sources. The HX-3 can produce very high headphone levels with extremely low noise and distortion.

The HX-3: Portable Headphone Distribution Amplifier
The compact HX-3 Headphone Distribution Amplifier is the perfect accessory to quickly provide three high-performance stereo headphone feeds with individual level controls from line-level sources. The HX-3 can produce very high headphone levels with extremely low noise and distortion.

Great for Radio, TV, Film, and Music Productions

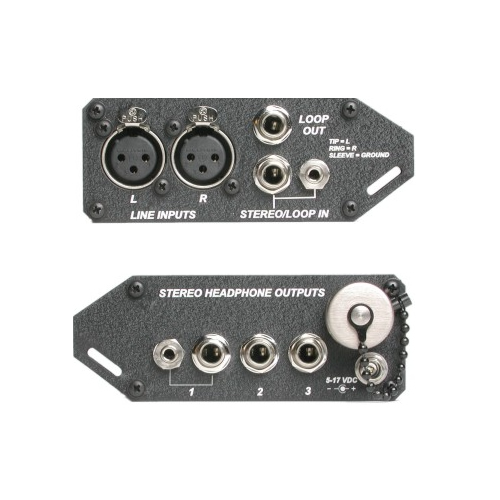

The HX-3 accepts balanced XLR line-level inputs or unbalanced 1/4-inch and 1/8-inch stereo inputs. Its 1/4-inch loop-out can connect multiple HX-3’s for additional headphone outputs. Headphones are connected to panel-mounted 1/4-inch stereo connectors.

The HX-3 has a durable aluminum chassis to withstand the punishment of field and studio environments. The unit is powered by inexpensive batteries (two-AA) or external 5-18 VDC.

The HX-3 can add headphone outputs to the 552, 302, MM-1, and USBPre-2.







Frequency Response
  • 10 Hz - 50 kHz, -±1.0 dB, any input to any output, gain controls set to 50%
Voltage Gain
  • 34 dB from balanced line to headphone output, 35 dB from headphone input to headphone output
Output Clipping Level
  • +18 dBu minimum with 600 ohm load, +16 dBu minimum with 300 ohm load
Headphone Output Impedance
  • 200 ohms
Input Clipping Level
  • XLR: +24 dBu minimum
  • 1/4-inch and 1/8-inch inputs: +22 dBu minimum
Dynamic Range (balanced line inputs)
  • 120 dB minimum
THD + Noise
  • 0.03% maximum (from 10 Hz to 22 kHz @ +10 dBu input and output level, 300 ohm load, 10 Hz - 22 kHz filter bandwidth)
Inputs
  • XLR: electronically balanced, 22k ohm input impedance, 1/4-inch unbalanced: 9.1k ohm impedance
  • 1/8-inch unbalanced: 9.1k ohm impedance.
Internal Voltage Rails
  • ±15 V, regulated
Power Source
  • Internal: 2 AA alkaline batteries, 18 hours life typical with nominal levels. External: 5 - 17 VDC via threaded coaxial connector (5.5 mm outer diameter, 2.1 mm inner diameter), pin positive, sleeve negative.
Power LED
  • Green indicates power and good battery. Red indicates power with low batteries. LED turns red when ~ 4 hours of battery life remain.
Operating Temperature Range
  • 0 to 70 degrees C
  • 32 to 160 degrees F
Dimensions
  • 43 mm x 94 mm x 140 mm (h x w x d) (1.7" x 3.7" x 5.5")
Weight (unit only)
  • 0.56 kg
  • 1.24 lbs
Included Accessories
  • 1/4-inch to 1/8-inch trs interconnect cable, rubber feet (4), locking DC jack
