BSRF

AS-122 Dual channel active splitter

AS-122

Dual Channel Active Splitter

775.00 ex vat 930.00 inc vat

QTY

estimated delivery 2-3 days

BSRF AS-122 Dual Channel Active Splitter

AS-122 is a dual channel active antenna splitter (1 BNC to 6 SMA per channel) for use with up to six diversity receivers. With its rugged and compact housing, it is designed for harsh conditions and can easily be used in an audio bag or a sound cart.

Both passive and active antennas can be plugged in BNC inputs using DC feed feature. Individual current limitation allows to detect that a problem happens on DC feed supply (check manual for more informations).

A LED indicates if RF level is too high on each channel. The unit is powered from an external DC supply plugged in Hirose 4 pin connector.












Bandwidth 340MHz-770MHz
Gain 0dB (+/- 1dB)
Noise figure 1,5 dB
OIP3 30dBm
Isolation between outputs min 15 dB
RF inputs 1xBNC 50 ohms
DC feed 12V/200mA

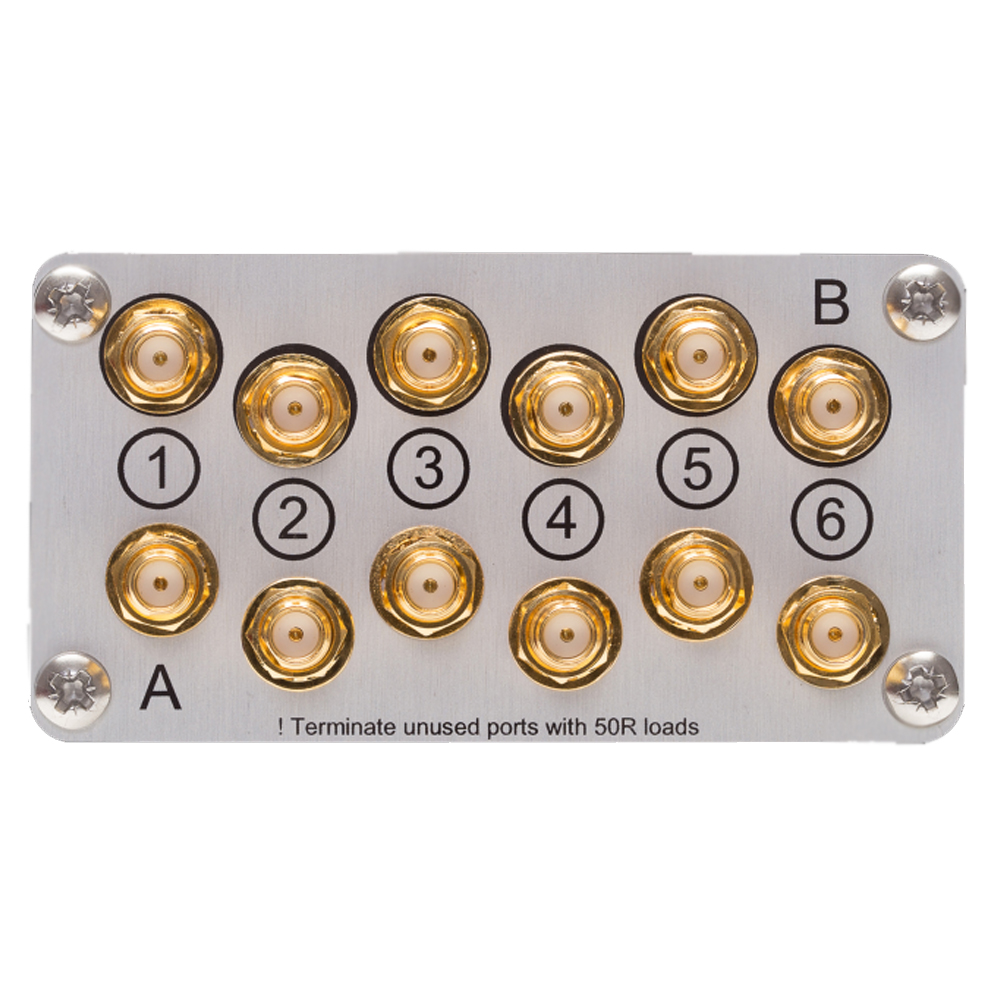

RF outputs 2 x 6 SMA 50 ohms
Current 150 mA without active antennas
Supply HRS4, 12-17V
Dimensions 88 x 84 x 44mm
Weight 265g
