Sound Devices

MixPre-6 II Audio Recorder / Mixer / USB Audio Interface

MIXPRE-6 II

8 Track Audio Recorder Mixer With Integrated USB Audio Interface

£1,075.00 ex vat £1,290.00 inc vat

QTY

estimated delivery 6 - 8 Weeks

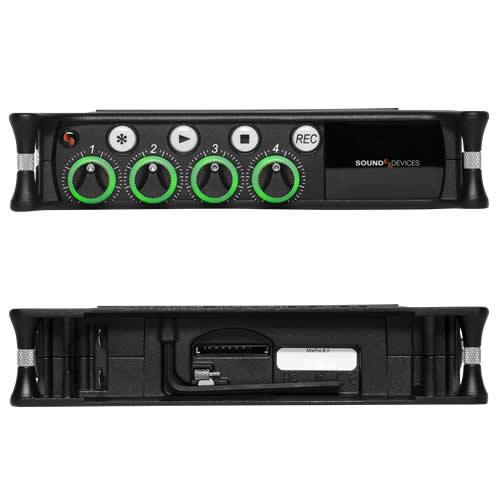

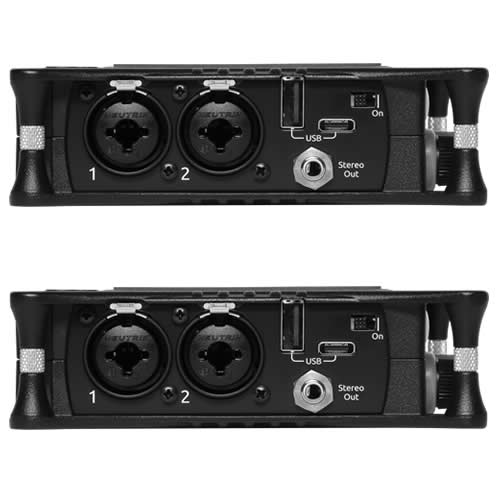

MixPre-6 II Audio Recorder / Mixer / USB Audio Interface

If you record field audio, sound effects, podcasts, voice-overs, music, audio for film, or are just starting your audio journey, the MixPre-6 II is for you! With four crystal-clear, ultra low-noise Kashmir preamps, you can record multiple actors, multiple podcasters, or audio for film with superior quality – all the way up to a 32-bit float bit depth and a 192 kHz sample rate. This newest generation of Sound Devices’ award-winning MixPre Series has been redesigned for increased performance and an astounding 142 dB of dynamic range.

Your MixPre-6 II is highly customizable to your needs. Record internally to a compatible SD card on set or stream your podcast over USB to your computer at home. Power with your computer, wall power, or record in the middle of nowhere with AA or Sony L-mount batteries. Adjust limiters, bit depth, sample rates, gain, pan, low-cut, phase inversion and phantom power to your liking. Trigger your camera with the internal timecode generator, or feed timecode in via HDMI or Aux In. The choice is yours!

Professionals love the flexibility of the MixPre Series. Don’t need all those options? Basic mode has you covered.

Your MixPre-6 II is rugged, lightweight, and small, so you can throw it in a bag or mount it to a tripod or camera – or get situated on set with our Wingman App and one of our four supported USB control surfaces. With the superior sound and build quality that you can expect from the industry leader in production audio recording, your MixPre-6 II can capture audio for any application. Our friendly and knowledgeable support team, based in the USA and Germany, is here for all your questions and comments. Our job is to make your job easier.



Key Features

  • Four ultra-low-noise Kashmir microphone preamps with adjustable limiters capture high quality audio in the field, on set, or with a computer.
  • Create a mix using the built-in 6 x 2 portable mixer.
  • Record up to 8 tracks to an SD card and backup to a USB thumb drive.
  • 8-in, 4-out USB audio interface streams to your computer via USB-C.
  • Choose bit depths from 16 to 32-bit float, and sampling rates from 44.1 kHz to 192 kHz.
  • Internal LTC timecode generator. Timecode In/Out via Aux In/Stereo Out.
  • Timecode and record triggering via HDMI.
  • USB-A for control surfaces, keyboards, and auto-copy to USB drive.
  • In-unit ISO mixing, gain, pan, low-cut, phase inversion, and phantom power.
  • Sunlight-readable color touch screen and LED metering.
  • Lightweight, durable, and small: perfect for bag use, mobile recording, or a home studio.
  • Powerful 300 mW+300 mW headphone amp allows clear and accurate reference of audio.
  • Includes a MX-4AA Battery Sled (batteries not included), MX-PSU AC Power Supply, and USB-C to USB-C cable.
  • Customize with plugins from the Plugin Store.



What’s New in the MixPre-6 II?

  • Bit depth up to 32-bit float for increased dynamic range.
  • Same intuitive interface, more powerful hardware.
  • Internal LTC Timecode Generation and Output.
  • Adjustable Limiters.
  • Auto-copy to USB Drive.
  • Pre-roll buffer increased to 10 seconds.





MixPre Old Vs. New Comparison

Feature MixPre II Original MixPre
32-bit float recording All models No
192 kHz recording All models MixPre-6 & 10T only
Timecode Generator/Reader All models MixPre-10T only
USB file copy All models MixPre-10T only
+18 dBu output MixPre-10 II No
Adjustable Limiter options All models No
Sample Rate recording All MixPre II models
(44.1, 47.952, 48, 48.048, 96, 192 kHz)
MixPre-3 (44.1, 48, 96 kHz)
MixPre-6 (44.1, 48, 96, 192 kHz)
MixPre-10T (Identical to MixPre II)
Pre-roll duration at 48 kHz All models: 10 seconds MixPre-10T: 10 seconds
MixPre-3 & 6: 5 seconds



Customize With Plugins

Are you a songwriter or musician? Buy the Musician Plugin to easily create a song using your MixPre-6 II as a standalone recorder or USB interface. Use onboard features like overdub, bounce, reverb, and tracking to a metronome. Create Music Projects to lay down backing tracks and use them live or at home for writing or practicing. Capturing your song ideas has never been easier! While in Music Mode, the MixPre-6 II is limited to six simultaneous live inputs.

Download the free Ambisonics Plugin to record in 360° audio and monitor binaurally with an ambisonic microphone like the Sennheiser AMBEO and your MixPre-6 II.

















Audio Inputs

Frequency Response 10 Hz to 80 kHz +/- 0.5 dB re 1 kHz @ 192 kHz sample rate
THD + Noise 0.005% max (@1 kHz, 22-22 kHz BW, gain= 20 dB, -10 dBu in)
ADC 32 bit precision; 142 dB dynamic range min (A-weighted, gain = 10 dB, fader = 0 dB)
Equivalent Input Noise -130 dBV (-128 dBu) max (A-weighting, gain = 76 dB, 150 ohm source impedance)
Mic inputs XLR active-balanced; 4k input
Line inputs XLR active-balanced; 4k input
Line inputs ¼-inch TRS active-balanced; 4k input
Aux/Mic in 3.5 mm TRS, 2-channel unbalanced; 100k input
USB Audio 4 channels
All inputs fully RF-filtered and overload protected.
Mic input gain +6 dB to +76 dB
Line input gain -20 dB to +30 dB
Fader -inf to +20 dB
Headphone gain -inf to +20 dB
Total gain, Mic-to-recording (max) +96 dB
Aux In (Mic) Gain = +10 dB to +40 dB
Aux In (Line) Gain = -10 dB to +20 dB
Total Aux Gain including Fader (Mic-to-recording) +60 dB
Maximum Input Level Mic XLR +14 dBu (limiters on or off)
Maximum Input Level Line XLR/¼-inch +28 dBu (limiters on or off)
Maximum Input Level Aux In (Mic) -10 dBu
Maximum Input Level Aux In (Line) +10 dBu
Low Cut Filters 40 Hz to 160 Hz (adjustable), 18 dB/oct. First stage analog, subsequent stages digital.
Microphone Powering Mic XLRs 48 V via 6.8k resistors, 10 mA each
Microphone Powering Mic 3.5 mm 3 V @ 3k source
Limiter at all gain stages, range > 40dB. First stage analog, subsequent stages digital. Adjustable Threshold, Ratio, and Release.

Audio Outputs

DAC feeding Stereo Out, Headphone Out 32 bit precision; 115 dB dynamic range (A-weighted)
Stereo Out 3.5 mm TRS stereo unbalanced, 500 ohm output impedance, +7.8 dBu max output level
Headphones Out 3.5 mm TRS stereo unbalanced, 300 mW + 300 mW, for use with any impedance headphones

USB

USB Audio Interface (USB-C) 8-in/4-out; 44.1 to 96 kHz; 16/24-bit; Class-compliant USB 2.0 high speed or ASIO® (supplied via download)
USB Mass Storage (USB-C) USB 2.0 high speed
USB Keyboard (USB-A) Text entry and control
USB Thumbdrive (USB-A) Manual or auto-copy to drive
USB Midi Control Surface (USB-A)

Recording

Maximum Record Tracks 8 Tracks: Stereo mix + 6 ISOs
Sampling Frequency 44.1, 47.952, 48, 48.048, 96, 192 kHz
Bit Depth 16, 24, 32 Float
Recording Storage Type SD, SDXC, SDHC Card (USB thumbdrive, copy only)
Recording Storage Max Storage Size 512 GB (SDXC)
Recording Storage Card format exFAT
Recording File Type Polyphonic WAV

Timecode

Timecode Modes Free Run, Time of Day (file stamped w/current ToD, Rec Run, Ext LTC (file stamped w/incoming LTC on 3.5mm Aux In), Camera TC (file stamped w/incoming TC from cameras that output TC)
Timecode Frame Rates Auto-detects (fps): 23.98 (same as 23.976), 24, 25, 29.97DF, 29.97ND, 30, 30DF
3.5 mm Aux In Timecode Input 20k ohm impedance, 0.3 V - 3.0 V p-p (–17 dBu - +3 dBu)
3.5 mm Stereo Out | Timecode Output 1k ohm impedance, 3.0V p-p (+12 dBu)
HDMI TC Reader via HDMI

Remote Control


Bluetooth LE Wireless control using Wingman app
HDMI (micro) Auto-record start/stop trigger from cameras that output record flag over HDMI
Timecode Auto-record start/stop trigger via Aux In timecode
Touch Screen 320x256; 1.6-inch, color, sunlight-viewable IPS LCD

Power

AA Batteries 4x AA sled (included); 8x AA sled (optional accessory). NiMH recommended
L-Mount Optional sled for 2x (hot-swappable) Li-ion batteries
From computer Bus-powered via USB-C port; optional MX-USBY cable, connects one USB-C to two USB-A ports
AC Adapter MX-PSU (included) Power supply wall adapter w/ USB-C connector; 15 W; has 4 adapter plugs for US, UK, AU & Europe

Environmental

Operating -20°C to 60°C, 0 to 90% relative humidity; (non-condensing)
Storage -40°C to 85°C
Dimensions 36mm x 166 mm x 118 mm (H x W x D); 1.40” x 6.53” x 4.65”
Weight .56 kg; 19.9 oz. (unpackaged, without batteries)
