DADM224 MK 2 Diversity Antenna Distribution Module (No DC Out)

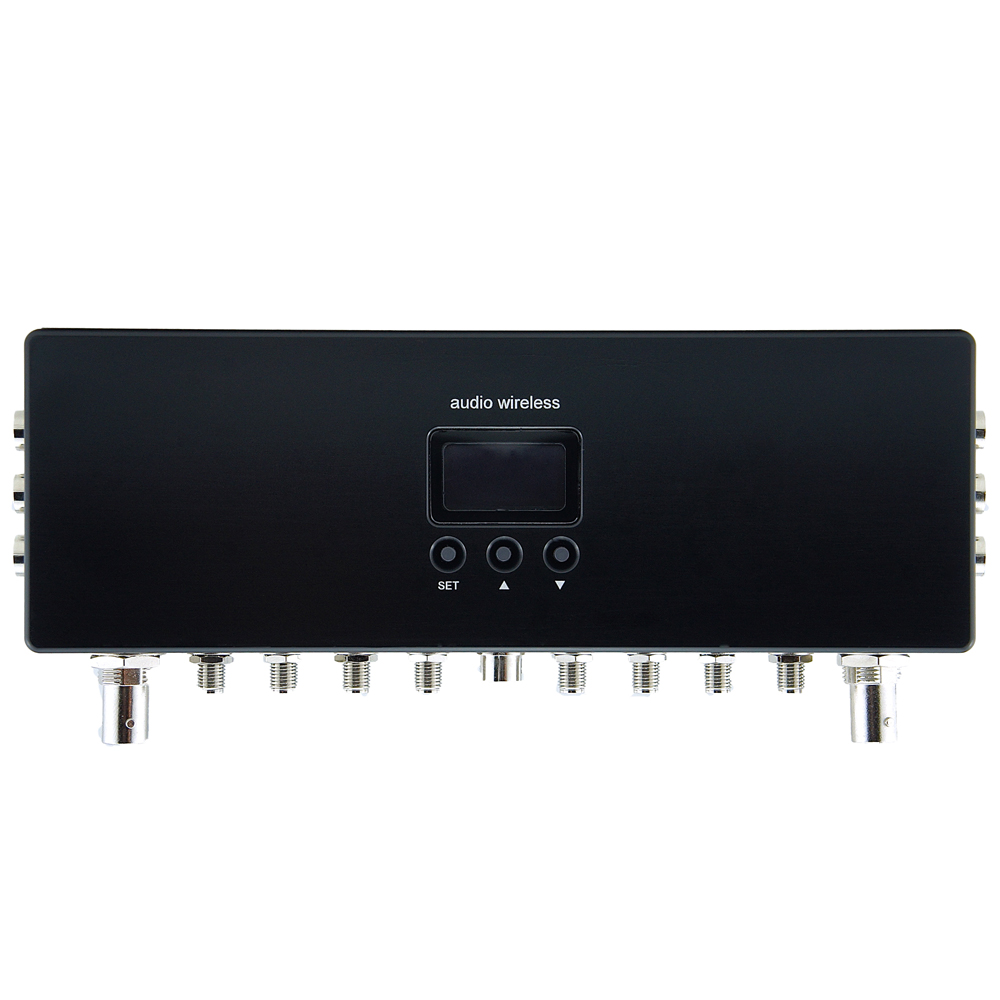

Diversity Antenna Distribution Module DADM224-MK2 is a custom design, which offers the solution to antenna distribution requirements for portable sound bag applications. Designed for where the weight and size matters without sacrificing on performance.

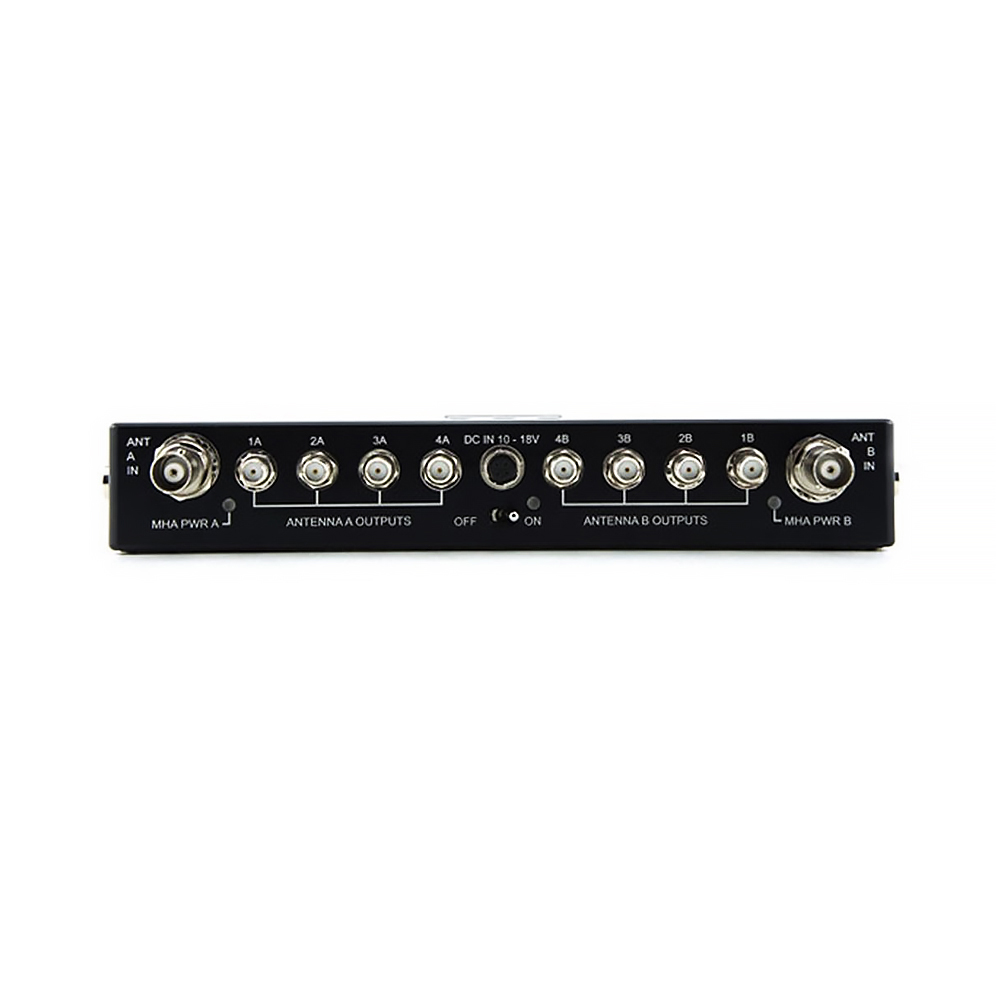

The DADM224-MK2 is a 2 IN and 2 x 4 OUT active antenna distribution system with in-built very selective out-of-band rejection, very low insertion loss band-pass filtering; the DADM224-MK2 eliminates multiple receiver antennas and provides a tidy sound bag solution with improved RF performance. There are two industry standard BNC input connectors for antenna inputs which enables use of standard low loss RF extension cables, and there 2 x 4 mini RF SMA connectors feeding the diversity receivers.

In applications when remote antenna powering is needed, the DADM offers switchable MHA powering with RED LEDs indicating power ON/OFF status, the MHA powering can be turned ON/OFF through the OLED display menu.

The DADM224-MK2 has a very high input signal handling capacity with very low noise figure and offers an outstanding inter-modulation performance when compared to other low power devices available.

The tuning bandwidth is custom designed to suit varying applications and attached RX/TX tuning bandwidths; the system gain is user adjustable in 1dB steps between +6dB to -10dB, the DADM224-MK2 is compatible with digital, hybrid and analogue radio microphone receivers available in the industry.

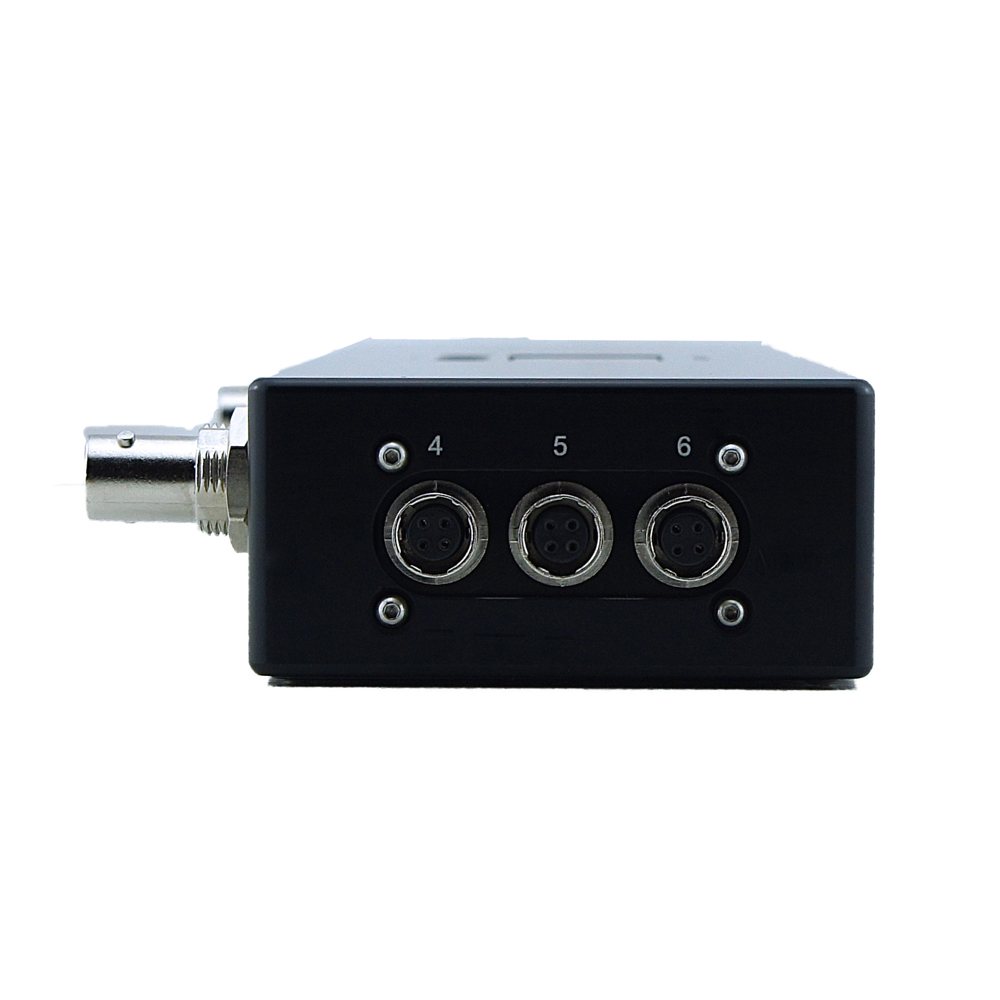

The DADM is externally powered between 10-18Vdc, the dc input connector is an industry standard 4-pin Hirose. A green LED indicates power-on status of the system box, and the OLED display continuously displays dc input voltage.

Audio Wireless wide tuning range systems are now first choice among freelance sound engineers, hiring companies as well as major broadcasters for all wireless microphone applications.

Features:

• One pair of antennae feeds up to four diversity receivers
• Built-in band-pass filtering and signal splitters
• Remote antenna powering
• User-adjustable system gain
• Industry standard connectors
• Intuitive OLED display menu and LED indicators
• Master ON-OFF switch
• Continuous system volts monitoring
• Soft ON-OFF switch for each individual Remote Antenna powering
• CNC machined aluminium custom design, lightweight and rugged - fits neatly in any sound bag
