DSQD 4-way backward compatible digital half-rack receiver
DSQD
The DSQD Half-Rack Receiver is a four channel receiver backwards compatible with SM, LT, HM, SSM, HH UM400(a), LM, MM, and WM transmitters. It's part of the D Squared digital wireless system.
Four discrete audio channels are packed into a single half-rack chassis, with balanced analog and Dante® digital network outputs. The receiver tunes continuously across the UHF band from 470.100 to 614.375 MHz.
The digital architecture delivers studio quality audio with ultra-low latency. The receiver includes an extended operating range rivaling the best analog and Digital Hybrid Wireless® systems with tracking filters that stay centered on the selected frequency.
The DSQD is also backward compatible with any Digital Hybrid Wireless® transmitters including the SM Series, LT, HM Series, SSM, HH Series, UM400, UM400a, LM Series, MM Series, and WM.
The receiver provides a USB port for firmware updates, an IR port for fast setup and an ethernet port for control. A large, high resolution, backlit LCD and large membrane switches provide an intuitive interface that is highly visible in daylight or dimly lit conditions.
Wireless Designer software integrates the digital and Digital Hybrid Wireless into a single control panel with site scanning and frequency coordination. The software is free and can be used while connected to equipment or offline in planning a multi-channel system.

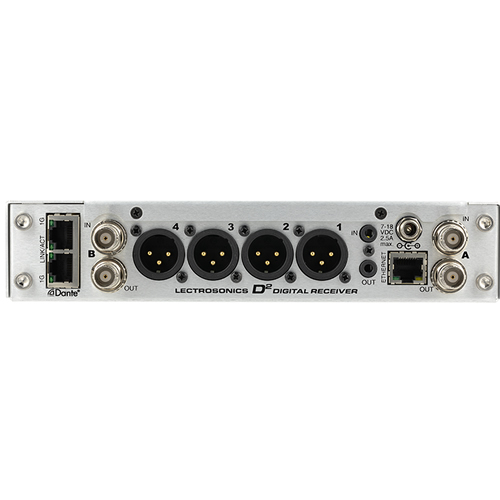

Antenna ports on the rear panel accept input from remote antennas, with a “loop-thru” output to another mainframe using the internal multicoupler.
Each DSQD ships with half the rack hardware needed to mount two units together, yielding 8 channels in 1RU.
Key Features
| Operating Spectrum | 470.100 - 614.375 MHz |
| Frequency Adjustment Range | 25 kHz steps |
| Sampling Size and Rate | 24-bit, 48 kHz |
| Digital Modulation | 8PSK with Forward Error Correction |
| Data Encoding | Proprietary ADPCM |
| Encryption | AES 256-CTR (per FIPS 197 and FIPS 140-2) |
| Latency | |
| Digital Source | 1.0 ms plus Dante network |
| Analog Source | Less than 1.4 ms |
| Audio Performance | |
| Frequency Response | 20 Hz - 20 KHz, +-1 dB |
| THD+N | 0.05% (1 KHz @ -10 dBFS) |
| Dynamic Range | 108 dB A-wtd, NR=NORMAL |
| Adjacent Channel Isolation | Greater than 85 dB |
| Diversity Technique | Noiseless antenna switching |
| Sensitivity | -98 dBm for 10-5 BER |
| Antenna Inputs/Outputs | Dual BNC female, 50 ohm impedance |
| Audio Outputs | |
| XLR | Balanced, -35 to +8 dBu |
| Headphone | 1/4 inch phone jack |
| Dante | RJ45 |
| External DC Power | 7 to 18 VDC; 2.5A (max) |
| Weight | 1.95 lbs.; 880 grams |
| Dimensions | 8.375" x 1.75" x 7.375" (213 x 44.5 x 187 mm.) |
