BP2786
Tracer 12v 40Ah Lithium Iron Phosphate, Peli Case Kit.
Professional power packs housed within a protective Peli™ Case. These Lithium Iron Phosphate battery packs are a portable solution, easy to carry and install.

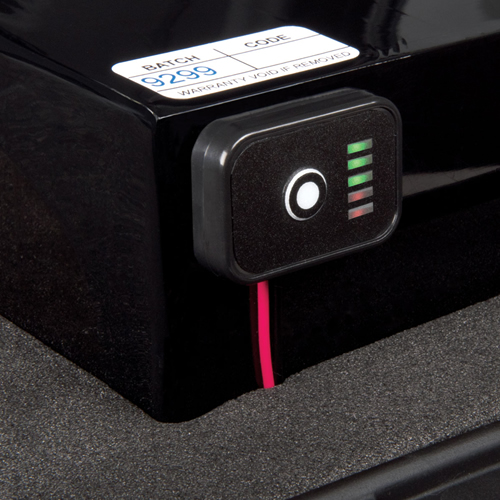

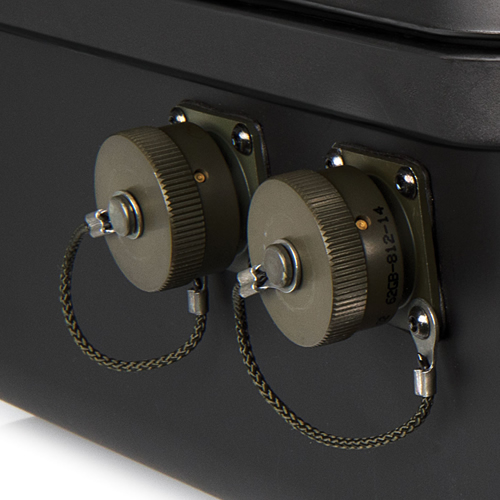

A robust IP67 Waterproof standard case has been pre wired. Built using Amphenol Circular MIL Spec Connector system offering full IP67 protection. The batteries use prismatic cells that create the lightest weight construction. Supplied with built-in internal LED Fuel gauge and charger.
The technology used provides a lightweight compact attractively priced battery, which is ideal for a variety of mobile solutions. A digital battery meter indicates battery charge state. The batteries have been certified to UN38.3 safety standards and are CE and RoHS approved.
Please Note: This item can only be shipped to UK Mainland addresses.
Key features:
Kit Variants:
| Code | Model | Dimensions | Weight | Charge Time (Hrs) | Run Time | Max Discharge Current | ||
| mm | Kg | 12v 10A (TR8206) | 12v 20A (TR8212) | 100w | Continuous | Peak for 10ms | ||
| BP2786 | 12V 40Ah | 300 x 249 x 119 | 6 | 5 - 7 | 3 - 5 | 5hrs | 30A | 60A |
| BP2788 | 12V 80Ah | 411 x 322 x 168 | 10.8 | 12 - 15 | 6 - 9 | 9hrs | 30A | 60A |
| BP2789 | 12V 100Ah | 411 x 322 x 168 | 13.2 | 14 - 18 | 9 - 14 | 12hrs | 30A | 60A |
| BP2790 | 12V 170Ah | 462 x 340 x 170 | 22 | 22 - 30 | 13 - 18 | 20hrs | 30A | 60A |
| 24v 5A (TR8208) | ||||||||
| BP2785 | 24V 20Ah | 300 x 249 x 119 | 6 | 5 - 7 | 5hrs | 30A | 60A | |
 |
 |
 |
| Type | Lithium Iron Phosphate |
| Nominal Voltage | 12V |
| Capacity | 40Ah |
| Charge Time | 5 - 7 hrs |
| Charger | 10A Charger |
| Battery Life | 1400+ Cycles |

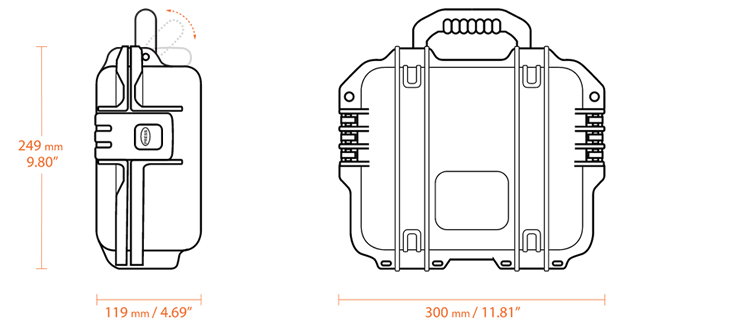

| Dimensions | 11.8 x 9.8 x 4.7" - 300 x 249 x 119 cm |
| Weight | 13.2 lbs - 6Kg |
| Watt-Hour | 480Wh |
| Max Continuous Discharge Current | 30A |
| Max Peak Current (for 10mS) | 60A |
| Discharge Cut-off Voltage | 8V |
| Charging Voltage | 14V |
| Temperature Range (charging) | 0°C - 40°C |
| Temperature Range (discharging) | -10°C - 60°C |
| Self Discharge | <0.5% per day |
