BP2905
Tracer 12v 50Ah Li-ion Carry Case Kit, includes Charger.
These Li-ion portable carry case battery kits are supplied fully wired, complete with a smart charger and multiple outputs, including USB.
The technology used provides a lightweight compact attractively priced battery, which is ideal for a variety of mobile solutions. A digital battery meter indicates battery charge state. The batteries have been certified to UN38.3 safety standards and are CE and RoHS approved.
Please Note: This item can only be shipped to UK Mainland addresses.
Key features:
Kit Variants:
| Code | Model | Dimensions | Weight | Charge Time | Run Time | Max Discharge Current | ||
| mm | Kg | 10A (TR8206) | 20A (TR8212) | 100w | Continuous | Peak (for 10ms) | ||
| BP2905 | 12V 50Ah | 330 x 280 x 130 | 5 | 7hrs | 4hrs | 6hrs | 30A | 60A |
| BP2910 | 12V 100Ah | 440 x 330 x 110 | 9 | 13hrs | 7hrs | 12hrs | 30A | 60A |
| BP2915 | 12V 150Ah | 440 x 350 x 160 | 12 | 20hrs | 11hrs | 18hrs | 30A | 60A |
What's included:
| Type | Lithium Ion |
| Nominal Voltage | 12V |
| Capacity | 50Ah |
| Charge Time | 4 - 7 hrs |
| Charger | 10A Charger |
| Battery Life | 500+ Cycles |

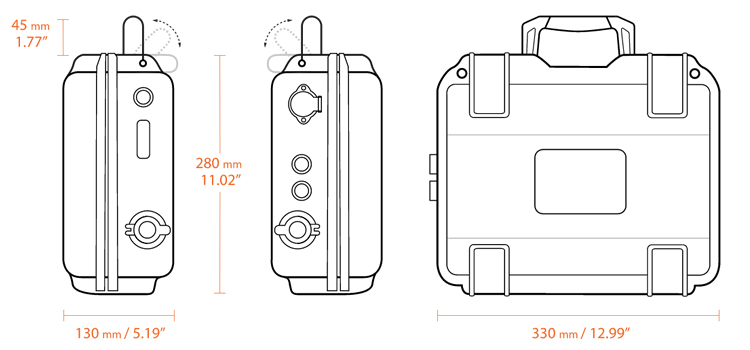

| Dimensions | 12.9 x 11 x 5.2" - 330 x 280 x 130 cm |
| Weight | 11.2 lbs - 5Kg |
| Watt-Hour | 600Wh |
| Max Continuous Discharge Current | 20A |
| Max Peak Current (for 10mS) | 50A |
| Discharge Cut-off Voltage | 8.25V |
| Charging Voltage | 12.6V |
| Temperature Range (charging) | 0°C - 45°C |
| Temperature Range (discharging) | -10°C - 60°C |
| Self Discharge | <0.5% per day |
