Lectrosonics

M2T/E01 Transmitter

M2 Duet System IEM/IFB Transmitter

M2T/E01

Please Call for Availability

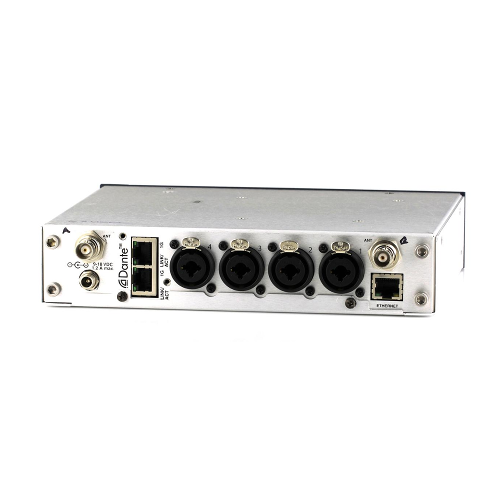

Lectrosonics M2T Transmitter

The M2T half-rack transmitter houses two stereo transmitters to provide two stereo audio channels, and for up to four mono audio channels in a single rack space. The audio inputs can be individually configured to be analog or Dante* compatible. The analog input connectors are full-size XLR/TRS combo types for balanced line-level analog signals while the input preamp circuits use a special balanced amplifier with very high common mode rejection to minimize hum and noise.

A Dante™ Ultimo™ interface via dual RJ45 connectors accepts Dante networked audio inputs and can daisy chain the digital stream to additional units via CAT6 cables.*

An additional RJ45 jack provides an Ethernet connection for programming and control via Wireless Designer™ software and a USB jack on the front panel allows for firmware updates. The transmitter features a full color, backlit LCD for high visibility in any environment, while the chassis is all-metal and can be racked singly or in pairs using included rack mount hardware.

  • IEM (Wireless Monitor) with digital RF transmission
  • 24-bit digital audio
  • 2 independent stereo audio transmissions per 1/2 RV enclosure
  • USB port for firmware updates
  • Fully Dante™ compatible*
  • IR (infrared) port for fast setup
  • Up to 50 mW per Rf carrier
  • All metal housing
  • Compatible with Wireless Designer™ Software

*Dante is not compatible with the M2TND/E01 model.






 Included Accessories
  • 21926 Cable USB
  • 25990 Bracket Rear Tie M2T/M4T
  • 25991 Bracket Front Tie M2T/M4T
  • 27076 Rack Flange Bracket
  • 27082 Rack Handle RMP2T
  • 4 - 28885 SCR10 Cap Screw
  • 4 - 35664 Rubber Foot (Large)
  • 35800 Hex L Key Wrench
  • 35959 Hole Plug
  • 2 - A500RA20 Antenna
  • DCR15/4AU DC Power Supply
  • Instruction Manual
