Femto

FEMTO

Battery powered Stereo Mic Preamp W/ 48V Phantom Power

£445.00 ex vat £534.00 inc vat

QTY

Estimated delivery 3-4 days

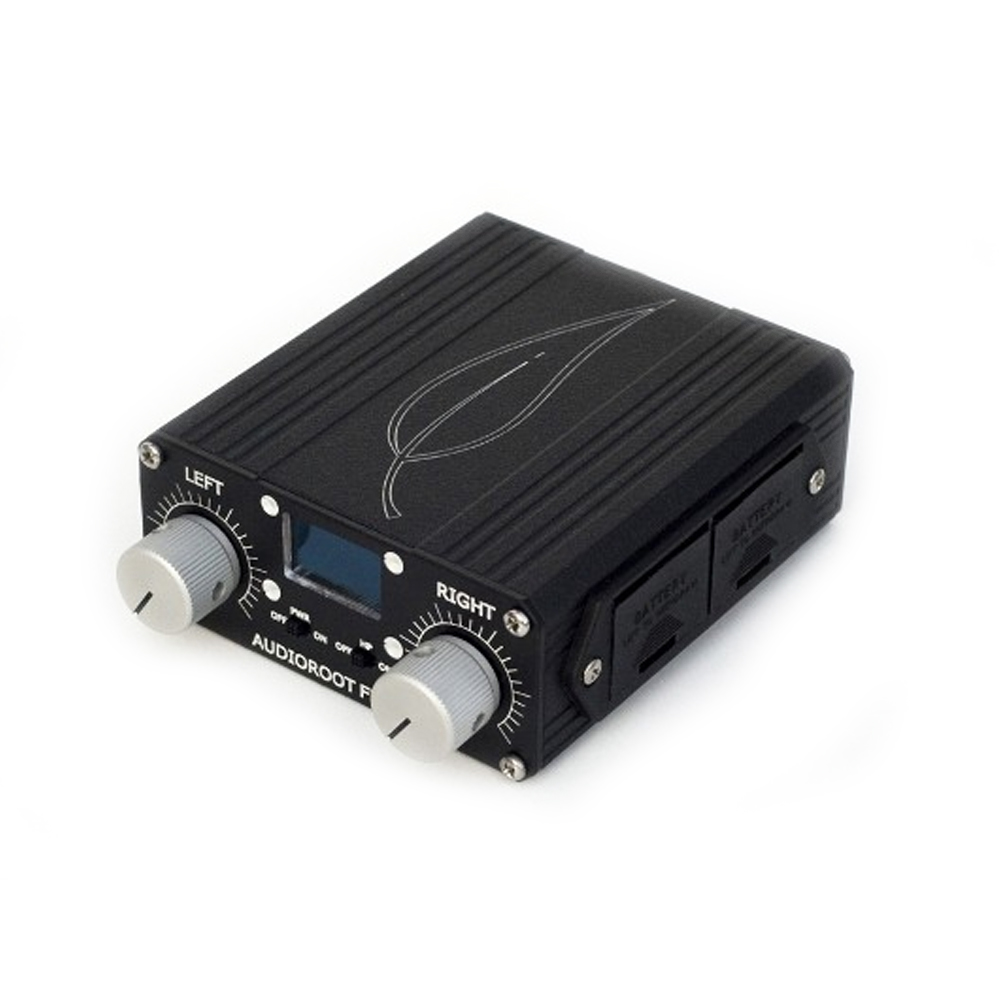

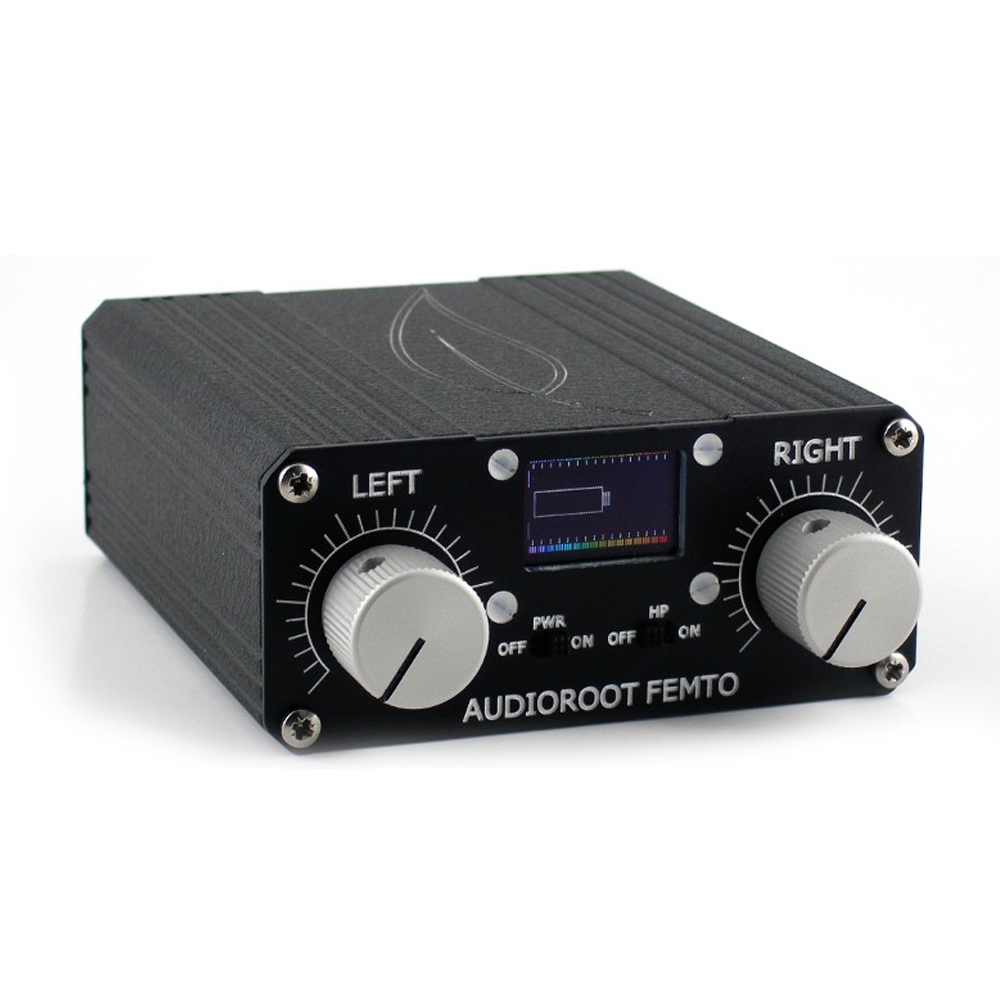

The Audioroot Femto

The AUDIOROOT FEMTO is a high quality battery powered mic preamp that was designed for location sound recording ( ENG, EFP, music, etc…). It combines in a single box a high gain – low noise microphone preamp with 48V phantom powering, a 80hz 12dB/oct high pass filter and a beautiful OLED screen for audio and battery level information display. The FEMTO was designed to resist over time and against the harshest environments. The FEMTO’s premium electronics are protected by a lightweight powder coated aluminum extruded enclosure. Markings are directly engraved on the aluminum face panels to resist over time. The AUDIOROOT FEMTO is a high gain mic preamp with a default minimum gain setting of +10dB.

A balanced line output cable XLR5 -> 2 x TA3F) is included for every purchase of an Audioroot FEMTO

Recommended external 100-240V PSU (not included) : MEAN WELL GE12I18-P1J

Features

  • Dual high gain/low noise mic preamp (+10 to + 64dB)
  • 48V phantom powering
  • 80hz 12dB/oct high pass filter
  • Bright OLED screen (sunlight readable)

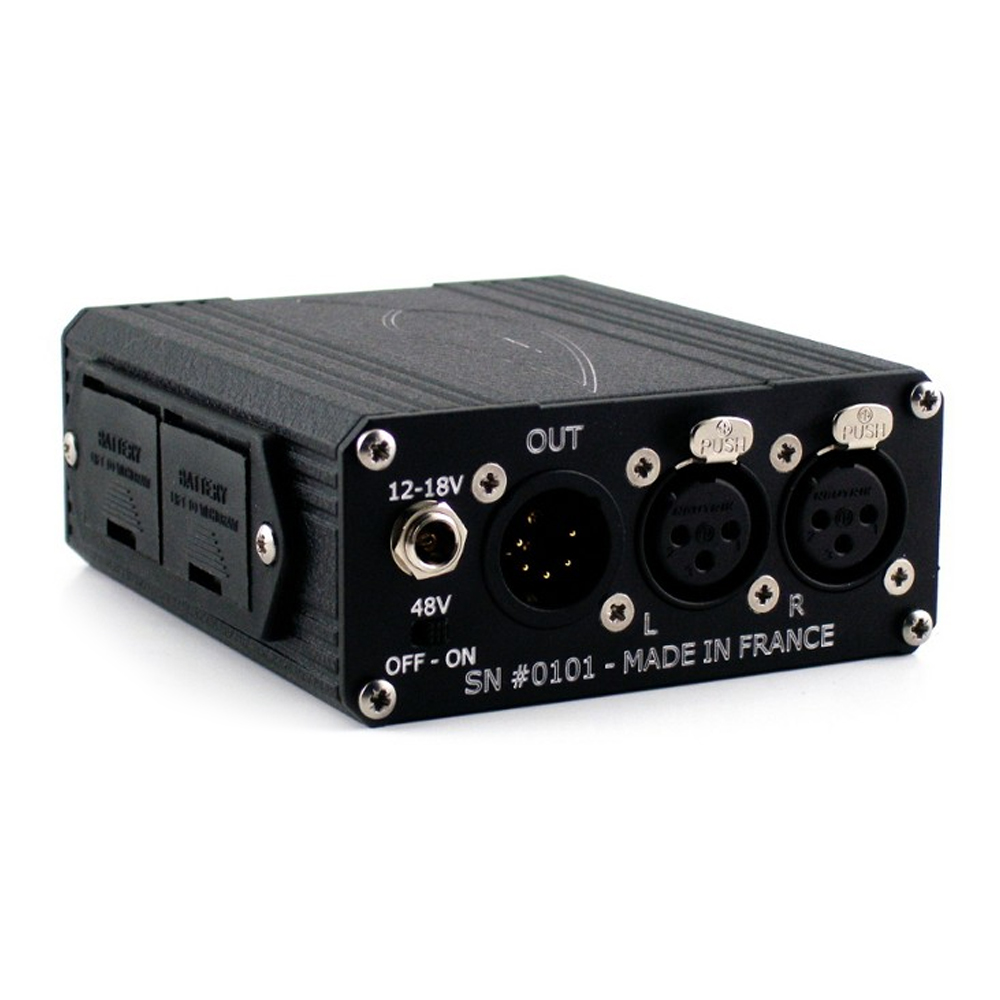

  • 2 mic inputs on XLR3 connectors
  • Balanced line level output on XLR5 connector
  • High quality audio potentiometers
  • Superb powder coated and engraved aluminum enclosure
  • Lightweight – small footprint
  • Power efficient ( 6 hours autonomy with 2 Schoeps CMC64Ug)

Specs

  • Input impedance / impédance d’entrée : > 5kohms
  • Min gain : 10dB
  • Max gain (Zsource = 50R, Zload =600ohms) : > 64dB
  • Distorsion : 0.002% < 40dB gain / 0.006% @ 60dB gain
  • Equivalent input noise EIN (bruit ramnené à l’entrée) : -129.2dBu @ gain max  (Zsource = 200Ohms)
  • Bandwidth / bande passante (+/- 3 dB) : 15Hz – 20kHz
  • Max ouput level / niveau de sortie max (Zload = 600R, Vpower = 16V) : +18dBu
  • Power consumption – (external powering = 18V) : 48V off : 44mA / 48V on + 2 Schoeps CMC6Ug : 82mA
  • Power consumption – (internal powering ) : 48V off : 31mA / 48V on + 2 Schoeps CMC6Ug : 67mA
  • External power connector : Switchcraft barrel or Hirose 4 pin connector

Weight (without batteries) : 327g
Dimensions : 95 x 129 x 42mm (l x p x h)
Powering: 2 x 9V batteries (type 6LR61) or external (12-18V)
