Thinking of upgrading your shotgun microphone? Why not take advantage of this specially selected WBS Ltd bundle offer. The combination of these items offers exceptional wind protection and high quality audio reproduction.

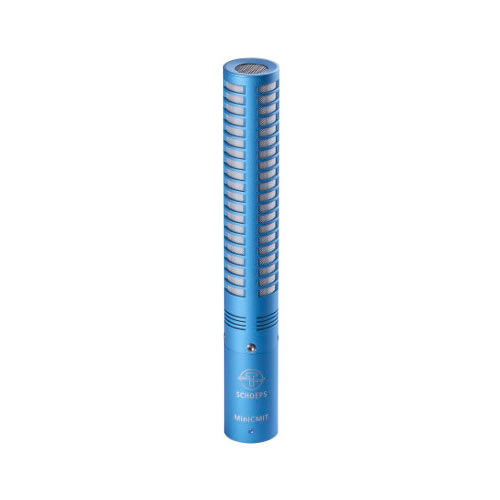

MiniCMIT
The shotgun microphone MiniCMIT offers the characteristics of a CMIT 5 in more compact form. The MiniCMIT, CMIT 5 and SuperCMIT (ch2) have identical frequency response curves. Furthermore, the MiniCMIT and CMIT 5 have circuitry with similar characteristics, such that the microphones can be interchanged without altering the sound.
Features
Cinela Pianissimo
Following the success of the PIANO, the PIANISSIMO is mainly designed for the new generation of short shotgun microphones and coincident stereo, surround-sound combinations and many other mics shorter than 8 in (21 cm).
As with all other Cinela windshields since 2007, Pianissimo integrates a unique full-cage isolation to prevent vibrations and handling noise by an additional ~15 db. This Cinela invention, the well-known "floating basket" principle, is achieved by four flexible "U" isolators installed around the cage. A rubber bellows at the bottom of the cage insures flexibility and keeps wind out.
Easily transportable, the PIANISSIMO is very light, robust, and adaptable, and includes all the recognised qualities of the existing range of Cinela windshields.
Key Features
What's included
Sensitivity | 16.5 mV/Pa |
Equivalent noise level (A-weighted) | 14 dB-A (P48) |
Equivalent noise level (CCIR) | 24 dB (P48) |
Maximum SPL | 130 dB (P48), 115 dB (P12) |
Powering Voltage | P48 / >24 V, P12 / >11 V |
Current Consumption with 48 V | 23 mA |
Output Impedance | 100 Ω |
Output socket | XLR-3M, analog, 1 channel |
Filter(s) | fixed low-cut, 70 Hz, 24 dB/oct. |
Length / Diameter | 151 mm / 21 mm |
Weight | 78 g |
Length of Cable | >100 m |
