AMPS IPS

Sony

ECM-77B

ECM-77B

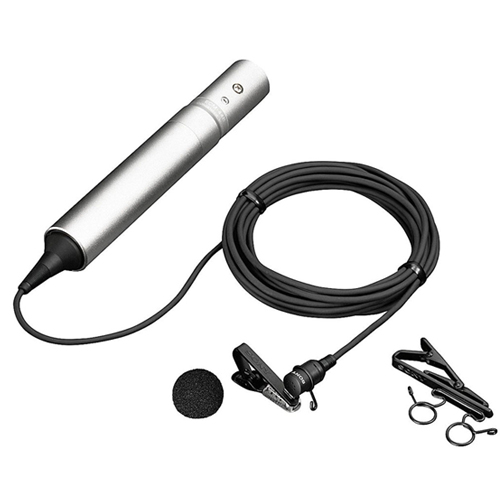

Discreet omni-directional lapel Electret condenser microphone with AA battery power supply and XLR connector

£430.00 ex vat £516.00 inc vat

QTY

estimated delivery 2-3 Days

Perfect for television applications, Sony's ECM77B Omni-Directional Electret Condenser Microphone is a miniature lavalier microphone designed to be inconspicuous. This tiny mic runs on either phantom power or AA battery operation. The ECM77B comes with an XLR connector

Product Specification:
  • Capsule Type Electret Condenser
  • Frequency Response 40 Hz to 20 kHz
  • Directivity Omni-directional
  • Connector: B type. Supplied with XLR connector in power supply unit (single AA size battery)
  • Sensitivity *[1] -39.0 dB (11.2 mV)
  • Output Impedance *[2] 2.5kΩ±30%, Unbalanced
  • Dynamic Range 90d B or more
  • Signal-to-Noise Ratio *[3] 64 dB or more
  • Inherent Noise *[4] 30 dB SPL or less
  • Induction Noise From External Magnetic Field *[5] 5 dB SPL or less
  • Wind Noise *[6] 40 dB SPL or less (with windscreen)
  • Maximum Input Sound Pressure Level *[7] 120 dB SPL
  • Mic Cable 9.8 feet
  • Power Requirements: DC 1.5V, AA size battery or +48V phantom power
  • Dimensions 1/4 diameter X 1/2 inch (Microphone head)13/16 diameter X 5 1/4 inch (Power unit XLR type)
  • Weight Approx. 4.3 oz (Includes Mic and Power Supply)

Supplied Accessories:

1x Single/horizontal type tie clip, 1xMetal-mesh type windscreen, 1x Dual/horizontal type tie clip, 1xSingle/vertical type tie clip, 1x Microphone case
