S-4030
24V powering solution for high draw devices
£620.00 ex vat
£744.00 inc vat

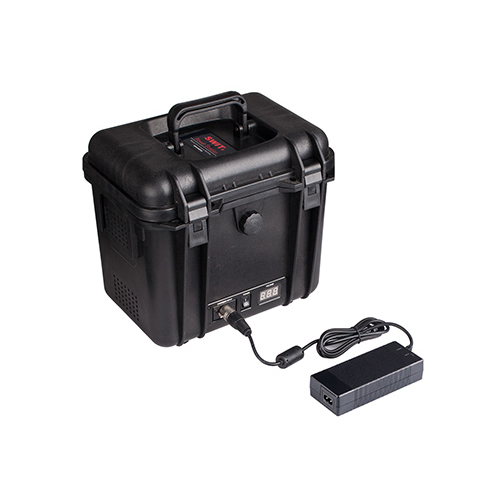

S-4030 power station box can install 4 pieces of V-mount batteries which can provide more power and longer power supply time comparing to single Li-ion battery. It can meet the demand of different users, and is very suitable for Cine cameras, lightings for Film & Television and mobile studios.
S-4030 adopts PP+ Fiber glass case which is high intensity, high toughness and high temperature resistant.
Considering the size, weight, power effeciency, and usability, S-4030 is designed to be powered with 1-4 V-lock batteries, which are widely used and easy to find.

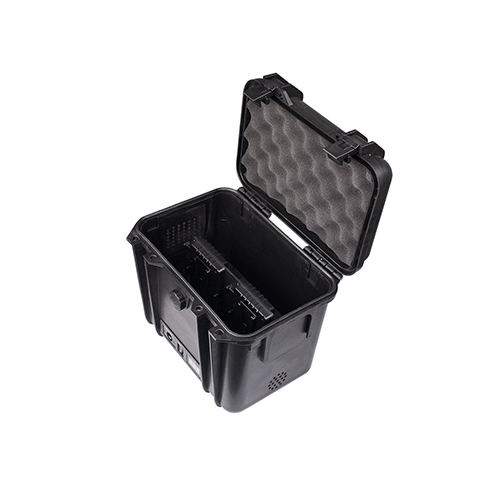

The following SWIT V-mount batteries will fit in the box:
S-8320S, S-8340S, S-8083S, S-8113S, S-8183S, S-8082S, S-8110S, S-8180S.
With auto-balanced circuit, S-4030 can be powered by 1-4 batteries, with different capacity. The max output is limited by the batteries’ output.
With 2-ch 3-pin XLR output sockets, S-4030 is capable of outputing 2-ch 22-33.6V, max 15A power simultaneously.
And S-4030 is designed with multiple circuit protections, such as over load, over voltage, and etc.
With a LED panel, S-4030 can display real-time voltage, and when battery capacity is too low, the LED panel will keep flashing to remind you to change or charge the battery
With the supplied 5A charger, user can charge the batteries in the S-4030 directly, without taking out of them.
The fan keeps dissipating heat from the box, and makes it safe when working in high temperature environment.
Features:
