S-4020
12V / 24V powering solution for high draw devices
£620.00 ex vat
£744.00 inc vat
S-4020 power station box can install 4 pieces of V-mount batteries which can provide more power and longer power supply time comparing to single Li-ion battery. It can meet the demand of different users, and is very suitable for Cine cameras, lightings for Film & Television and mobile studios. S-4020 adopts PP+ Fiber glass case which is high intensity, high toughness and high temperature resistant.
Considering the size, weight, power effeciency, and usability, S-4020 is designed to be powered with 1-4 V-lock batteries, which are widely used and easy to find. The S-4020 is compatible with all the SWIT V-lock batteries, or 3rd party batteries with dimensions less than 168(L)x101(W)x65(H)mm.

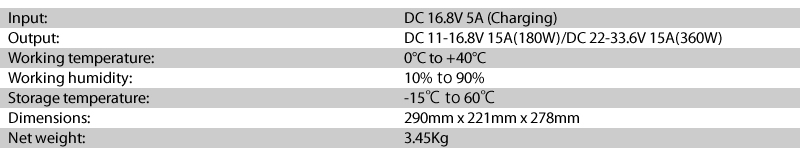

With auto-balanced circuit, S-4020 can be powered by 1-4 batteries, with different capacity. The max output is limited by the batteries’ output. Select 4-pin XLR 11-16.8V 15A(180W) or 3-pin XLR 22-33.6V15A(360W) to DC output.
The S-4020 is also designed with multiple circuit protections, such as over load, over voltage, and etc.With a LED panel, S-4020 can display real-time voltage, and when battery capacity is too low, the LED panel will keep flashing to remind you to change or charge batteries.

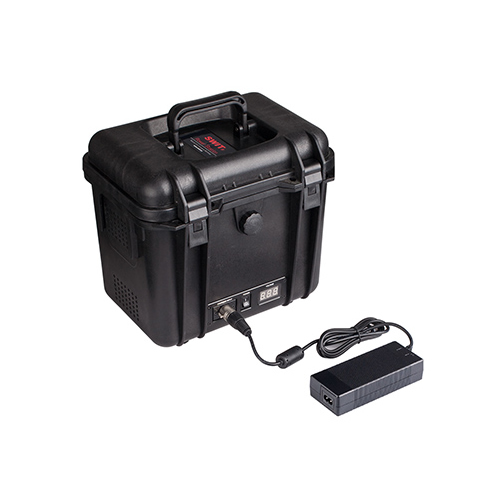

With the supplied 5A charger, user can charge the batteries in the S-4020 directly, without taking out of them. The fan keeps dissipating heat from the box, and makes it safe when working in high temperature environment.
With 4PCS of fully discharged 160wh batteries, S-4020 will take around 11.5 hours to fully charge these batteries with the supplied power adaptor and the charging current is uniform distribution. With 4PCS of fully charged 160wh batteries, S-4020 can power 85W power consumption Cine camera for around 7.5hours.

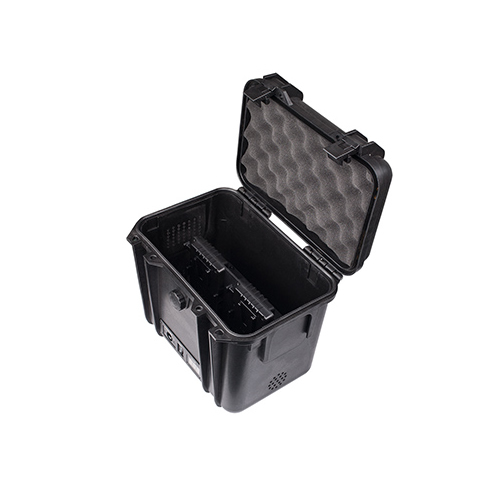

The S-4010 power station box can install 4 pieces of V-mount batteries which can provide more power and longer power supply time comparing to single Li-ion battery. It can meet the demand of different users, and is very suitable for Cine cameras, lightings for Film & Television and mobile studios.
The Power Box adopts PP+ Fiber glass case which is high intensity, high toughness and high temperature resistant.
Considering the size, weight, power effeciency, and usability, S-4010 is designed to be powered with 1-4 V-lock batteries, which are widely used and easy to find.
The following SWIT V-mount batteries will fit in the box - S-8320S, S-8340S, S-8083S, S-8113S, S-8183S, S-8082S, S-8110S, S-8180S.
With auto-balanced circuit, S-4010 can be powered by 1-4 batteries, with different capacity. The max output is limited by the batteries’ output. With 2-ch 4-pin XLR output sockets, S-4010 is capable of outputing 2-ch 11-16.8V, max 15A power simultaneously.
And S-4010 is designed with multiple circuit protections, such as over load, over voltage, and etc.
With a LED panel, S-4010 can display real-time voltage, and when battery capacity is too low, the LED panel will keep flashing to remind you to change or charge batteries.
With the supplied 5A charger, user can charge the batteries in the S-4010 directly, without taking out of them.
The fan keeps dissipating heat from the box, and makes it safe when working in high temperature environment.
Features:
