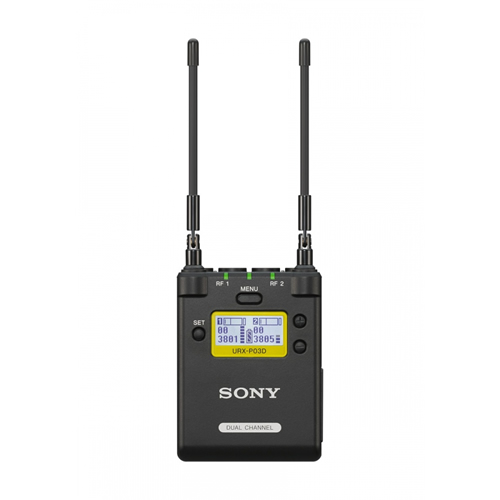

Sony URX-P03D 2-Channel portable receiver digital processing for ENG / EFP productions
URX-P03D
The URX-P03D 2-channel portable receiver forms part of a complete UWP-D audio system offering the sound quality of digital audio processing combined with the reliability of analogue FM modulation. The URX-P03D offers wide frequency coverage with up to 72 MHz bandwidth (depending on region) across a wide range of channels, with a choice of models to choose from. Easy-to-use features include a large display and small size to fit neatly on any size camcorder or DSLR camera, automatic channel setting function, headphone output, USB connection for power supply and line input availability. The receiver also has external mic input for an additional wired microphone and 3 channel mixer function. The UWP-D Series system provides superb transient response performance for all ENG / EFP production applications.
Digital Audio Processing for high quality sound
Improves transient response performance between the UWP-D transmitter and receiver, which will provide impressive natural sound quality compared to conventional analogue wireless systems.
External mic input for additional wired microphone
This portable receiver has an external mic input connector for additional wired microphone. It also has a 3 channel mixer function for the two wireless microphones and one wired microphone.
Wide frequency coverage with choice of channels available
The extra wide switching bandwidth covers a wide area, with a wide choice of channels available across multiple models - please refer to product specifications for more information.
Large display and small size receiver
The receiver features a large display for ease of use, while its small size means it fits neatly on any size camcorder or DSLR camera.
Easy to use features
Automatic channel setting function, headphone output, USB connection for power supply and line input availability.
>> Select the channel required in product options.
| Oscillator Type | Crystal-controlled PLL Synthesizer |
| Reception Type | Space diversity |
| Antenna Type | 1/4 wave length wire |
| Carrier Frequencies: Americas | UC14: 470.125 MHz to 541.875 MHz UC30: 566.125 MHz to 607.875 MHz and 614.125 MHz to 637.875 MHz (not available in Brazil) UC42: 638.125 MHz to 697.875 MHz |
| Carrier Frequencies: Europe, UAE, South Africa, Australia, Malaysia, Vietnam, New Zealand | CE21: 470.025 MHz to 542.000 (not available in Australia, Malaysia, Vietnam or New Zealand) CE33: 566.025 MHz to 633.000 MHz (not available in New Zealand) CE42: 638.025 MHz to 694.000 MHz CE51: 710.025 MHz to 782.000 MHz (only available in Europe) |
| Carrier Frequencies: China | CN38: 710.025 MHz to 782.000 MHz |
| Carrier Frequencies: Thailand, Taiwan, Singapore | E: 794.125 MHz to 805.875 MHz |
| Carrier Frequencies: Japan | JB: 806.125 MHz to 809.750 MHz |
| Carrier Frequencies: South Korea | KR3: 925.125 MHz to 937.500 MHz |
| Frequency Response | 23Hz to 18kHz (typical) |
| Signal-to-Noise Ratio | 96dB (max deviation, A-weighted) |
| Distortion (T.H.D) | 0.9% or less (-60dBV, 1kHz input) |
| Audio Delay | Approx. 0.375 msec |
| Analog Input | 3-pole mini jack, unbalanced |
| Analog Input Level | -50dBV (±12dB Adjustable, 3-dB step) |
| Analog Output | 3-pole mini jack, unbalanced |
| Analog Output Level | -60dBV (at ±5kHz deviation) |
| Analog Output Adjust Range | -12dB - +12dB (3dB step) |
| Headphone Output | φ3.5 mm ( 5/32 inch) stereo mini jack |
| Headphone Output Level | 5 mW (at 16ohm load) |
| Pilot Tone Signal | 32 kHz/ 32.382 kHz/ 32.768 kHz |
| Display | LCD |
| Power Requirements | DC 3.0 V (with two AA-size alkaline (LR6) batteries) DC 5.0V (via USB micro-B) |
| Battery Operating Time | Approx. five hours with Sony's AA-size alkaline (LR6) batteries at 25°C(77°F) |
| Operating Temperature | 0°C to 50°C 32°F to 122°F |
| Storage/Transport Temperature | -20°C to +55°C -4°F to +131°F |
| Dimensions | 63 x 82 x 28.4 mm (excluding the anntenas) (W x H x D) |
| Mass | Approx. 210 g (including batteries) |
