DWA-F01D

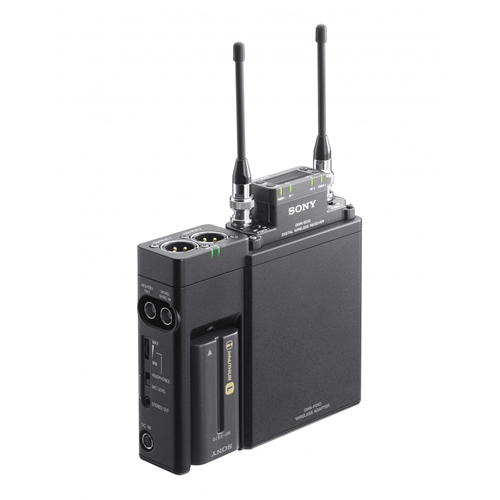

Sony DWA-F01D Digital wireless adaptor for DWX system
The DWA-F01D is an expandable adaptor for digital wireless receivers, designed to fit in mixer bags for ENG / EFP applications requiring top panel operation and the option of stand-alone battery power. The DWA-F01D can be used as a two-channel digital receiver with the DWR-S01D, and as a one-channel analogue receiver with the WRR-855S.

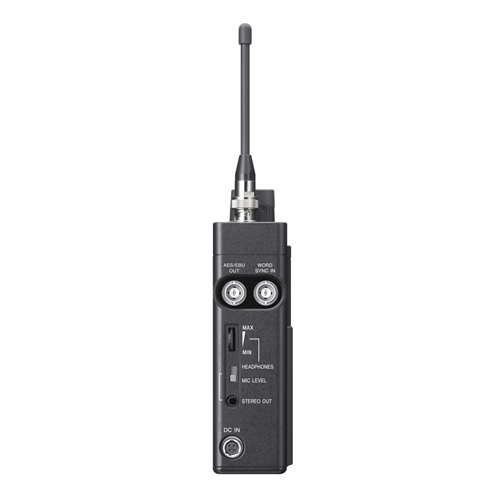

Three-way parallel audio outputs allow sound engineers to flexibly manage everything on-site. There is XLR analogue output for use with portable audio mixers or camcorders, BNC Digital (AES3id) output for use with portable audio recorders with AES3id digital inputs or long-distance AES3id transmission, and mini-phone analogue output for use with PCM recorders and DSLRs. Simultaneous outputs enable easy, convenient and redundant work-flow, for example, using the XLR for mixing, AES3id for multi-track recording, and mini-phone for back up.
(The mini-phone jack is selectable for headphones monitoring or mic level output.)
Three-way powering allows sound engineers to adapt to any situation on-site. Choose an optional InfoLITHIUM L battery for stand-alone use. Choose Hirose 4-pin DC input for camera-mount operation, with DC supplied from a camera battery. For mixer-bag use with battery systems, centralized management can be achieved using the Hirose 4-pin or BP jack. For AC powering, you can use an InfoLITHIUM battery charger as an AC adapter, or use a conventional AC adaptor with the BP jack.
| Analog Output |
XLR-3-32 (male) (x2) |
| Digital Output | Reference output level : -36 dBFS/-20 dBFS (switchable) Output Impedance : 75 Ω BNC-R |
| Headphone Output | Output level : 50mW (16 Ω load, at T.H.D = 1 %) o3.5 mm(5/32 inch) stereo mini jack (PHONES selected) |
| Word Sync | Input Impedence : 75 Ω Input connector : BNC-R External Word Sync : 32 kHz to 96 kHz |
| Power Requirements | InfoLITHIUM L battery (optional): DC jack: 6 V DC to 8.4 V DC (7.2 V DC nominal) 4-pin DC input: 10 V DC to 17 V DC (12 V DC nominal) |
| Battery Operating Times | Approx. 5 hours (Ambient temperature of 25 °C (77 °F), fully charged Sony NP-F570 lithium-ion battery, OUTPUT 1/2 unused, DWR-S01D CH1/CH2 ON, wireless remote control function OFF, auto switch for display set to AUTO DIMMER) |
| Operating Temperature | 32°F to 122°F 0°C to 50°C |
| Storage/Transport Temp | -4°F to +140°F -20°C to +60°C |
| Dimensions | 5 5/8 x 5 x 1 9/16 inches 142 x 125 x 39 mm (W x H x D) |
| Mass | Approx. 400 g (excluding receiver and battery) Approx. 14 oz (excluding receiver and battery) |
| Supplied Accessories | Warranty booklet (1) Operating Instructions (1) DC power cable (for 4-pin connector) (1) CD-ROM (1) LCS-F01D soft carrying case |
