SONY UWP-D12 PACKAGE

Sony’s UWP-D12 Handheld Wireless Mic package combines their UTX-M03 handheld transmitter and URX-P03 receiver. Also included in the kit are a microphone holder, microphone belt-clip and shoe-mount adaptor.

The Sony UWP wireless range offers wide frequency coverage with up to 72 MHz bandwidth (depending on region) across a wide range of channels. There are a choice of models to choose from. Easy-to-use features include a large display and small size receiver to fit neatly on any size camcorder or DSLR camera, automatic channel setting function and headphone output.

The UWP-D series has digital audio over analogue FM modulation design. This means the UWP-D12 system provides superb transient response for all ENG / EFP production applications.

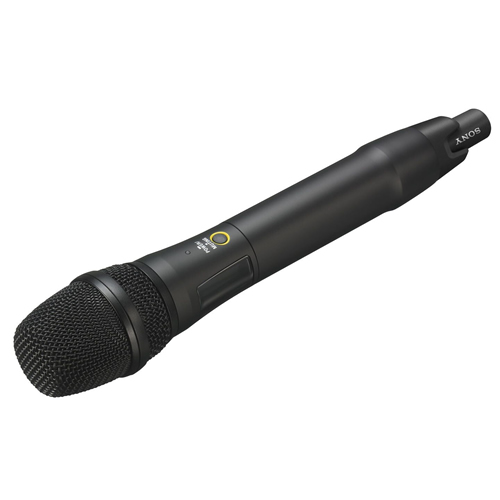

The UTX-M03 handheld microphone transmitter is provided with a Sony uni-directional dynamic capsule out the box. The microphone transmitter also gives the option of using interchangeable heads with over 40 different capsules from various manufacturers available that can be mounted.

Improves transient response performance between the UWP-D transmitter and receiver, delivering better natural sound quality compared to conventional analogue wireless systems.

The UWP-D12 comes as a complete package including: UTX-M03 handheld mic transmitter, URX-P03 portable receiver and everything you need to operate the wireless audio system.

The UTX-M03 handheld microphone transmitter is provided with a Sony uni-directional dynamic capsule. The transmitter also gives the option of using interchangeable heads with over 40 different capsules from various manufacturers available.

Wide frequency coverage with choice of channels available
The extra wide switching bandwidth covers a wide area, with a wide choice of channels available across multiple models. Please refer to product specifications for more information.

The transmitter and receiver both feature a large display for ease of use. The small size receiver fits neatly on any size camcorder or DSLR camera. Also featured: automatic channel setting function and headphone output.

UWP-D digital audio processing for high quality sound

The UWP-D Series wireless microphone systems uses Sony Digital Audio Processing to improve sound quality and transient response performance compared to conventional analogue wireless systems. It provides superb transient response performance. Analogue companding systems cannot accurately reproduce sounds such as a bell, tee shot or handclap, but Sony Digital Audio Processing reproduces them faithfully.

Large display and small size receiver

The URX-P03 portable receiver is designed to fit even small camcorders or DSLR cameras, with dimensions of 63mm x 82mm x 23.8mm (W x H x D) and a weight of approx. 176 g (including batteries). The transmitters and receivers also feature a bright 11.5mm x 27.8mm display, significantly larger than previous UWP models to make them easily readable in all situations.

Fast and easy channel scan

With its Clear Channel Scan, Active Channel Scan function and IR Sync features, the system detects unoccupied channels and selects the most appropriate channel automatically, for fast and easy system setup.

Automatic channel setting mode

The Auto Set channel mode allows the user to find and set available frequencies to use within the operating frequencies of the system. The receiver will automatically set the transmitter channel using the IR Sync feature.

Wide frequency coverage

The extra wide switching bandwidth covers a wide area, with a wide choice of channels available across multiple models – please refer to product specifications for more information.

True Diversity reception system

The UWP-D system achieves exceptionally stable audio signal being delivered from two independent receiver sections within the unit. Optimum signal quality is delivered by the two receivers sections and a comparison circuit constantly pulls the one with the best signal to give dropout free transmission.

Compatibility with Sony 800 and UWP Series analogue audio receivers

The UWP-D Series transmitters and receivers are also compatible with Sony’s WL-800 Series, UWP Series and Freedom Series, allowing users to switch between different companding modes.

Headphone output for monitoring

The UWP-D system provides its own headphone output socket, which is particularly useful when working with a camera that does not have a headphone output.

Robust metal body

The UTX-M03 handheld uni-directional microphone transmitter and URX-P03 portable receiver are made of strong, durable metal. Metal construction supports reliable use in rough operating conditions.

Rechargeable batteries

Rechargeable battery operation is available with Ni-MH batteries.

Variable output level on portable receiver

The system provides variable output level control of ±12dB, for use with the various input levels of camcorders and DSLR cameras.

Complete package with accessories

The UWP-D12 package includes the UTX-M03 handheld uni-directional microphone transmitter and URX-P03 portable receiver, as well as: microphone holder (1), belt clip (2), shoe-mount adapter (1), 3-pole locking mini plug/XLR-3-12C (male) (1), 3-pole locking mini plug/stereo mini plug (1), CD-ROM (1) (including operating Instructions and wireless microphone frequency list).
