S-8972

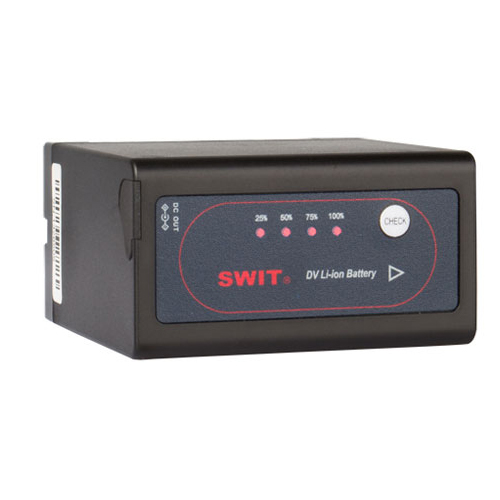

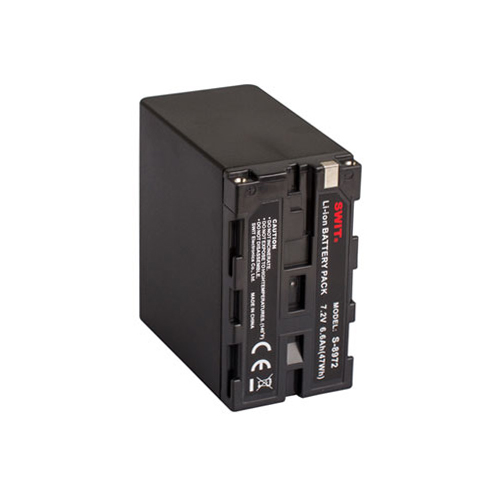

Swit S-8972 SONY L Series DV Camcorder Battery Pack
£60.00 ex vat
£72.00 inc vat
S-8972 is the replacement battery for SONY NP-F970, compatible with SONY HVR-V1/Z1/Z7, DSR-PD190, HD1000E, etc. S-8972 can exchange digital info with the cameras, and display remaining power info on the camera viewfinder.
47Wh / 6.6Ah High Capacity
With 7.2V nominal voltage, the S-8972 has 47Wh / 6.6Ah capacity,
and can run approx 5.5 hours on SONY HVR-Z1 camcorder when
LCD monitor is on.
Build-in D-tap DC Output Socket
A 5.5/2.1mm pole-tap DC output socket is equipped on the side of S-8972 battery, for DC 7.2V (Nominate) connection. You can connect on-camera LED light, monitor or wireless transmitter on the pole-tap socket, and get power simultaneously with camera.
The Max power from the pole-tap is 30W, 4A. The Pole-tap socket can also be used as charging input, by SWIT portable charger S-3010D.
4-level LED Power Indicator
The S-8972 battery has the 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using.
Easy Charging
The S-8972 can be charged on SWIT Dual channel charger S-3602F and SONY original charger. It takes about 4 hours and 30 minutes to charge from empty to 100%. And you can also use SWIT S-3010D Portable Pole-tap Charger for S-8972. It will take 7 hours to fully charge.
| Nominal Voltage | 7.2V | |
| Capacity | 47Wh, 6.6Ah | |
| Max output power | Total | 45W, 6A |
| Pins | 30W, 4A | |
| Pole-tap | 30W, 4A | |
| Applicable camera | SONY HVR-Z1/Z5/Z7/V1; | |
| SONY DSR-PD150/170/190; | ||
| SONY NEX-FS100/700/EA50; | ||
| SONY NXR-MC2000/HD1000; | ||
| Net weight | Approx 300g | |
| Dimensions | 71×39×70mm | |
