Swit S-3602U 2-ch SONY BP-U Charger and Adaptor

S-3602U is a dual channel charger for SWIT S-8U63 and compatible with SONY BP-U series batteries.

Intelligent Dual Channel Charging

S-3602U has 2 charging channels, totally DC 16.7V, 1.9A output, and can charge 2 batteries sequentially to 75% capacity, and then charge both batteries simultaneously to full. The 4-level LED charging indicators are provided for each channel, which indicate the real time capacity by percentage when charging.

AC-DC Adapting Output

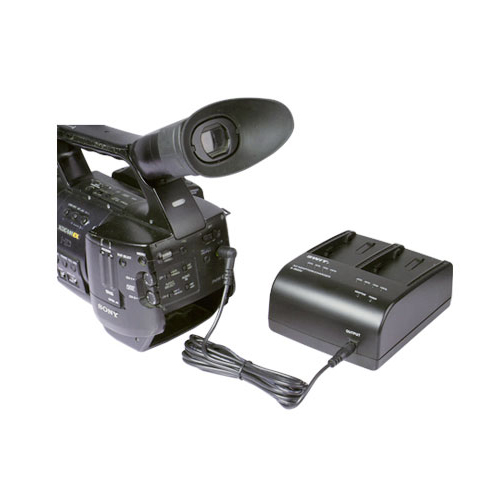

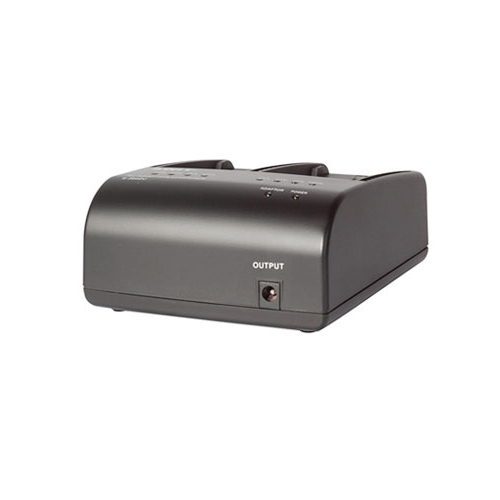

S-3602U has a 5.5mm/2.1mm pole socket of DC12V, 1.9A adapting output. The package also provides a DC cable for adapting SONY PMW-EX1/3/100/200 cameras.

Advanced Charging Curve

Li-ion charging follows a two-period approach. The first period is constant-current. The battery is charged at the maximum charging rate. When the battery reaches a specified set-point voltage, charging circuits switch to the second period: the constant-voltage period. The charging circuit will provide only enough current to maintain the voltage, to prevent the battery from over charging.


 Key Features

• Charger for SWIT S-8U63 DV battery
• 2-ch intelligent charging
• 1 DC adapting output for SONY cameras
• 4-level LED charging indicators
