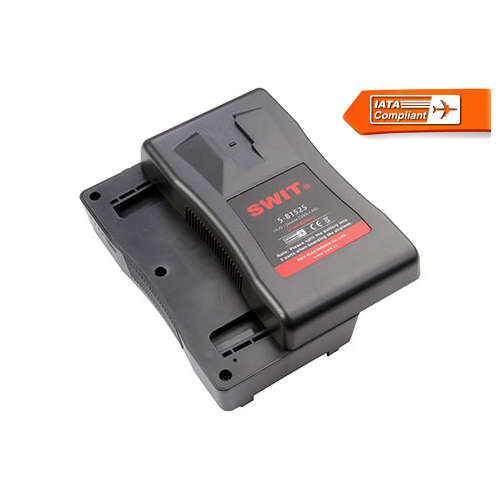

S-8152S
73+73Wh Dividable V-mount Battery Pack for airplane transportation
£237.50 ex vat
£285.00 inc vat
The S-8152S consists of 16pcs 18650 battery cells, and reaches 146Wh / 10.2Ah high capacity. S-8152S can run approx 4.5 hours for normal 30W ENG cameras, and has no problem to fly with. S-8152S is the standard SONY V-mount connection and we adopt the high quality metal V-wedge that ensures the reliable mounting.
Build-in D-tap DC Output Socket
A D-tap DC output socket is equipped on the top side of S-8152S battery, for DC14.4V (Nominate) connection, such as on-camera lights, monitors, wireless transmitter, etc. The Max Power from D-tap is 100W, 8A.
4 level LED Power Indicator
On the side of the battery, there’re 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using.
Strong and Durable Housing
Adopt the thicker and wider nickel slice to solder the cells, minimize the voltage drop, dissipate heating, and enhance the assembly intensity. The cells are arranged as triangular structure in the battery pack, stable and anti-shock. The cell holder inside can protect the cells pack, and separate the circuit board from the cells, to keep the boards away from internal pressure and ensure a stable working.
|
Battery Capacity
|
Carry-on Baggage
|
Air Cargo Shipping
|
|
Under 100Wh
|
OK
|
OK
|
|
100Wh-160Wh
|
Only 2pcs allowed
|
Not allowed
|
|
Over 160Wh
|
Not allowed
|
Not allowed
|
| Nominal Voltage | 14.4V |
| Capacity | 63+63Wh/4.4+4.4Ah |
| Max output power | 100W |
| Max output current | 8A |
| Mount Type | V-mount |
| Operation Temperature | 0-40°C |
| Net weight | Approx 1.01kg |
| Dimensions | 168×93×60mm |
