4017C
DPA 4017C Compact Supercardioid Microphone
£1,095.00 ex vat
£1,314.00 inc vat
Keypoints for the 4017C Compact Shotgun Microphone:
Setting new standards for compactness within shotgun microphones and their applications, the modular 4017C is an exceptionally short and lightweight interference tube microphone with high directionality. The tight polar pattern is very frequency linear and uniform. With the compact MMP-C pre-amp, booming applications such as in a car or in low ceiling rooms is uncomplicated. The total length of the microphone is as short as 15,4 cm (6.1 in), the weight at just 70 g (2.5 oz).

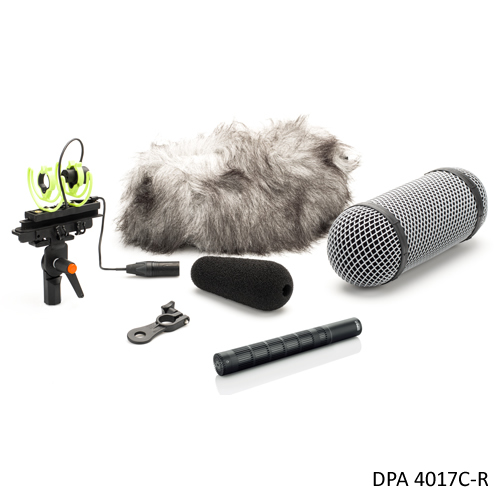

Also available with Rycote Windshield and suspension system, the 4017C-R is a fully packed and ready solution.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

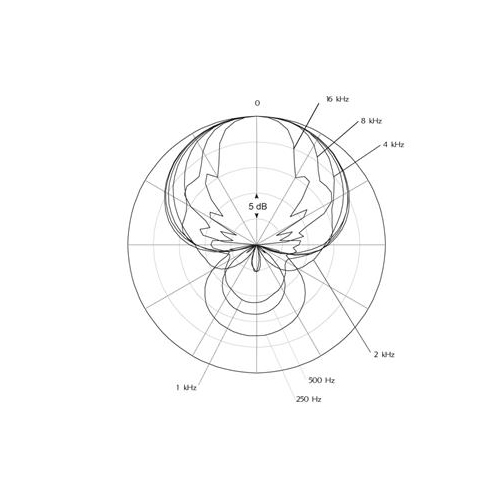

| Directional pattern: | Supercardioid, lobe-shaped |
|---|---|
| Principle of operation: | Pressure gradient, with interference tube |
| Cartridge type: | Pre-polarized condenser |
| Frequency range: | 20 Hz - 20 kHz |
| Frequency range, ± 2 dB, at 60 cm: | 40 Hz - 18 kHz with typ. 3 dB soft boost at 15 kHz |
| Sensitivity, nominal, ± 2 dB at 1 kHz: | 19 mV/Pa; -34.4 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted: | Typ. 13 dB(A) re. 20 µPa (max. 15 dB(A)) |
| Equivalent noise level, ITU-R BS.468-4: | Typ. 24 dB (max. 26 dB) |
| S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): | Typ. 81 dB(A) |
| Total Harmonic Distortion (THD): | < 1 % up to 133 dB SPL peak |
| Dynamic range: | Typ. 120 dB |
| Max. SPL, peak before clipping: | 146 dB |
| Output impedance: | 100 Ω |
| Minimum load impedance: | 2 kΩ |
| Cable drive capability: | 100 m (328 ft) |
| Output balance principle: | Impedance balancing with Active Drive |
| Common Mode Rejection Ratio (CMRR): | > 40 dB |
| Power consumption: | 48 V Phantom power (± 4 V) |
| Current consumption: | 2.8 mA |
| Connector: | XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase |
| Color: | Matte black |
| Weight: | 70 g (2.5 oz) |
| Microphone diameter: | 19 mm (0.75 in) |
| Capsule diameter: | 19 mm (0.75 in) |
| Microphone length: | 154 mm (6.1 in) |
| Output voltage, RMS: | 4.5V |
| Polarity: | +V at pin 2 for positive sound pressure |
| Temperature range: | -40 °C to 45 °C (-40 °F to 113 °F) |
| Relative Humidity (RH): | Up to 90% |
