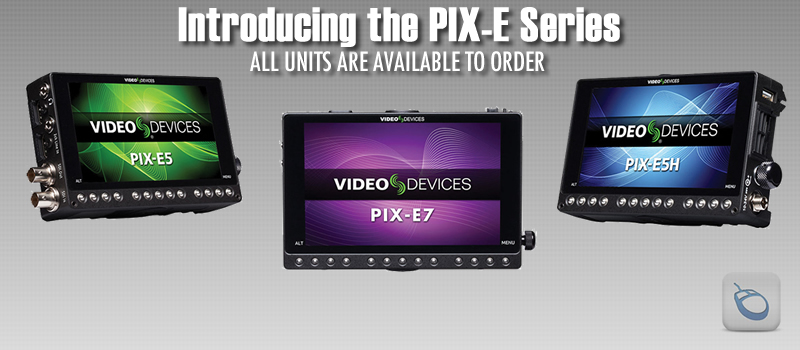

PIX-E Series Recorder / Monitor
Click Here to purchase PIX-E5H
Click Here to purchase PIX-E5
Click Here to purchase PIX-E7
| PIX-E Series Comparison Chart | |||
|---|---|---|---|
| Feature | PIX-E5H | PIX-E5 | PIX-E7 |
| Description | 5" Recording Field Monitor with HDMI | 5" Recording Field Monitor with SDI and HDMI | 7" Recording Field Monitor with SDI and HDMI |
| Display | |||
| Size | 5" | 5" | 7" |
| Resolution | 1920 x 1080, 441ppi | 1920 x 1080, 441ppi | 1920 x 1200, 323ppi |
| Brightness | 500 nits | 500 nits | 500 nits |
| Contrast Ratio | 1000:1 | 1000:1 | 1000:1 |
| Angle of View | 179 Deg | 179 Deg | 179 Deg |
| IPS | Yes | Yes | Yes |
| Gorilla® Glass 2 | Yes | Yes | Yes |
| MONITORING TOOLS | PIX-Assist™ | |||
| TapZoom™ | 1x, 2x, 4x | 1x, 2x, 4x | 1x, 2x, 4x |
| Peaking Filter | Yes | Yes | Yes |
| False Colors | 4-step, 12-step | 4-step, 12-step | 4-step, 12-step |
| Zebras | Zebras 1, Zebras 2 | Zebras 1, Zebras 2 | Zebras 1, Zebras 2 |
| Waveform Monitor | Luma (White, Green) RGB (Overlay, Parade) |
Luma (White, Green) RGB (Overlay, Parade) |
Luma (White, Green) RGB (Overlay, Parade) |
| Vectorscope | Yes | Yes | Yes |
| Histogram | Yes | Yes | Yes |
| LUTs | To LCD and/or Outputs Load from SD card | To LCD and/or Outputs Load from SD card | To LCD and/or Outputs Load from SD card |
| 4-way View (Live, WFM, Vector, Histogram) | Yes | Yes | Yes |
| Guide Markers | Yes | Yes | Yes |
| RECORDER | |||
| Recording Media | SpeedDrive (128G-1T) | SpeedDrive (128G-1T) | SpeedDrive (128G-1T) |
| Codec | Apple ProRes Proxy to Apple ProRes 422 HQ |
Apple ProRes Proxy to Apple ProRes 4444 XQ |
Apple ProRes Proxy to Apple ProRes 4444 XQ |
| HD (1080i, 1080p, 720p) | Up to 60 fps | Up to 60 fps | Up to 60 fps |
| UHD (3840x2160) - HDMI only | Up to 30 fps | Up to 30 fps | Up to 30 fps |
| 4K (4096x2160) - HDMI only | Up to 24 fps | Up to 24 fps | Up to 24 fps |
| File Transfer to Computer | via SpeedDrive USB 3.0 interface | via SpeedDrive USB 3.0 interface | via SpeedDrive USB 3.0 interface |
| USER INTERFACE | Touchscreen and Tactile Control | |||
| Capacitive Touchscreen | Yes | Yes | Yes |
| Real Tactile Buttons and Encoder | Yes | Yes | Yes |
| USB Keyboard | Yes | Yes | Yes |
| SD Card | Load/Save Settings Load LUTs | Load/Save Settings Load LUTs | Load/Save Settings Load LUTs |
| VIDEO I/O | |||
| Inputs | HDMI | 3G-SDI, HDMI | 3G-SDI, HDMI |
| Outputs | HDMI | 3G-SDI, HDMI | 3G-SDI, HDMI |
| Full Size HDMI ports | Yes | Yes | Yes |
| 4K Input to HD Ouput Scaling | Yes | Yes | Yes |
| PsF to P Conversion | Yes | Yes | Yes |
| 3:2 Pulldown Conversion | Yes | Yes | Yes |
| AUDIO I/O | |||
| Max No. Tracks | 6 | 8 | 8 |
| Analog Inputs | 2x unbalanced line, 3.5mm 2x balanced mic/line, XLR (via optional PIX-LR) |
2x unbalanced line, 3.5mm 2x balanced mic/line, XLR (via optional PIX-LR) |
2x unbalanced line, 3.5mm 2x balanced mic/line, XLR (via optional PIX-LR) |
| SDI Embedded Audio Inputs | -- | 8 | 8 |
| HDMI Embedded Audio Inputs | 2 | 2 | 2 |
| Headphone Output | Yes | Yes | Yes |
| TIMECODE | |||
| External SDI/HDMI TC Mode | HDMI Only | SDI, HDMI | SDI, HDMI |
| Record Run TC Mode | Yes | Yes | Yes |
| Time Of Day TC Mode | Yes | Yes | Yes |
| REMOTE CONTROL | |||
| Record Start/Stop Flags | HDMI Only | SDI, HDMI | SDI, HDMI |
| POWERING | |||
| Power Source | EXT DC (10-34V), 2x Sony L-Mount | EXT DC (10-34V), 2x Sony L-Mount | EXT DC (10-34V), 2x Sony L-Mount |
| Locking EXT DC Connector | Yes | Yes | Yes |
| Chassis | |||
| Materials | Robust Die-cast Aluminum Locking Nuts for BNC, 3.5mm, Ext DC Optically-bonded Gorilla Glass 2 | Robust Die-cast Aluminum Locking Nuts for BNC, 3.5mm, Ext DC Optically-bonded Gorilla Glass 2 | Robust Die-cast Aluminum Locking Nuts for BNC, 3.5mm, Ext DC Optically-bonded Gorilla Glass 2 |
| Size | 5.4" x 3.4" x 1.6" (WxHxD) | 5.4" x 3.4" x 1.6" (WxHxD) | 7.3" x 4.9" x 1.5" (WxHxD) |
| Weight | 15 oz | 1 lb | 1 lb 7 oz |
| OPTIONAL ACCESSORIES | |||
|
KIT - Hardcase, 2x L-Mount batteries, USB3 Y-cable, 2x 240G SpeedDrives, Sunhood, DTap to Coax Cable, Charger, HDMI Cable, SDI Cable, Articulating Arm |
Yes | Yes | Yes |
| PIX-LR - 2x balanced XLR Audio Inputs, Sunlight-readable LED Metering, Gain Controls, and Dedicated Transport Controls | Yes | Yes | Yes |
